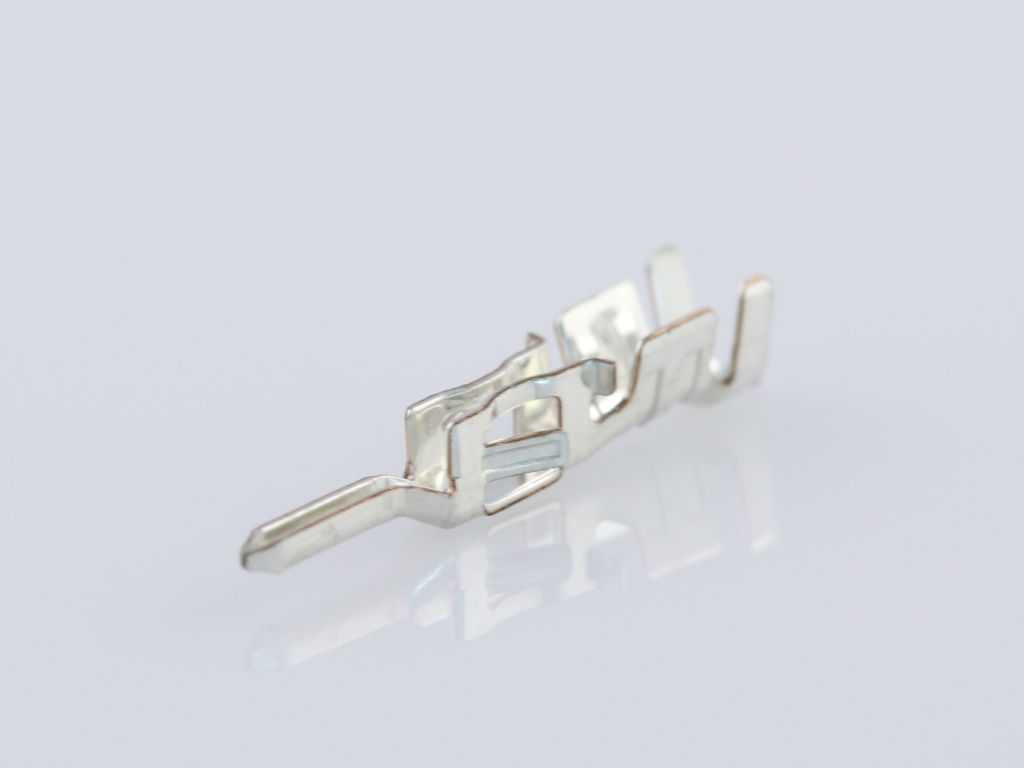

Molex Crimp Contacts 43031-0021

Molex Crimp Contacts 43031-0021

SKU43031-0021BrandMolex
AED 0.29
AED 0.29
Sale Sold out
Shipping calculated at checkout.

Molex, Micro-Fit 3.0 Crimp Terminal, Male, with Tin (Sn) Plated Phosphor Bronze Contact, 18 AWG, .073in / 1.85mm Max Insulation Outside Diameter, Reel

View full details
ParameterValue
Brand
Molex
Gender
Male
For Use With
Micro-Fit 3.0 Plug Housing 43020, Micro-Fit 3.0 Plug Housing 43640, Micro-Fit BMI Plug Housing 44300, Micro-Fit BMI Plug Housing 46625
Series
Micro-Fit
Termination Method
Crimp
Maximum Wire Size mm²
0.75mm²
Maximum Wire Size (mm²)
0.75mm²
Minimum Wire Size AWG
18AWG
Contact Plating
Tin
Minimum Wire Size (AWG)
18AWG
ParameterValue
Maximum Wire Size AWG
18AWG
Contact Material
Phosphor Bronze
Maximum Wire Size (AWG)
18AWG
Series Number
43031
Maximum Contact Resistance
10m?
Maximum Current
8.5A
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+105°C
Country of Origin
China
