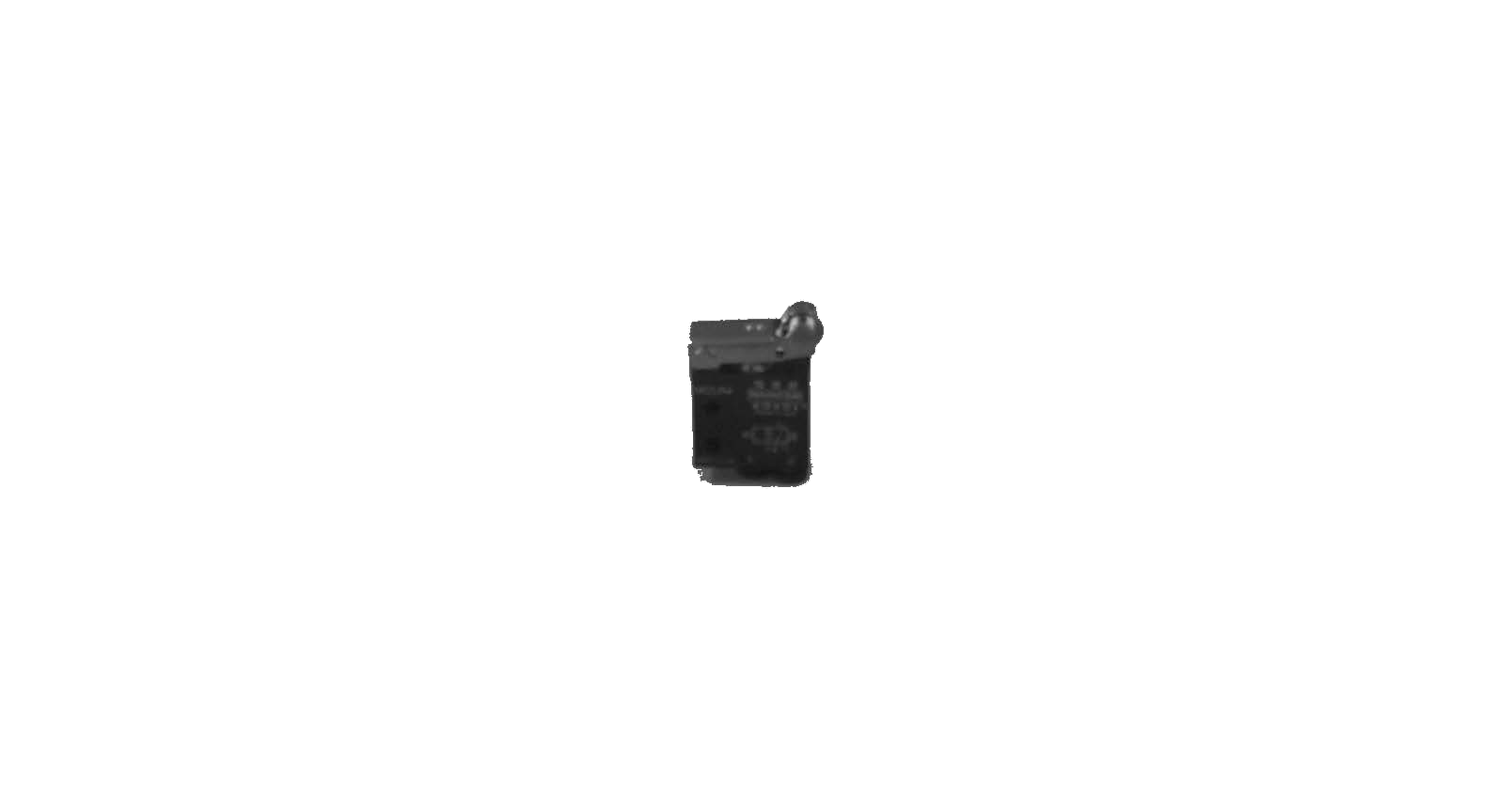

Waircom MHALRM5/L - Series M 2/2 N.O. Roller lever Mechanical Valve (M5 side threaded)

Waircom MHALRM5/L - Series M 2/2 N.O. Roller lever Mechanical Valve (M5 side threaded)

SKUMHALRM5/LBrandWaircom
AED 82.00
AED 82.00
Sale Sold out
Shipping calculated at checkout.

The Waircom MHALRM5/L is a high-performance 2/2 N.O. mechanical valve from the rugged Series M range. Engineered for reliable micro-pneumatic control via a mechanical Roller actuator, this compact valve requires a 7 N actuation force to deliver an efficient flow rate of 83 Nl/min. The structural assembly consists of an anodized aluminium alloy body paired with durable nbr seals. Standard fluid connections are optimized via M5 side threaded configurations, supporting stable system pressure ranges between 2 – 10 bar.

View full details
ParameterValue
Brand
Waircom
Series
Series M
Function
2/2 N.O.
Control Type
Roller lever
Actuator Type
Roller
Port Size
M5 side threaded
Nominal Bore
Ø2.5 mm
ParameterValue
Actuation Force
7 N at 6 bar
Flow Rate
83 Nl/min at 6 bar
Body Material
Anodized aluminium alloy
Seals
NBR
Operating Pressure
2 – 10 bar
Operating Temperature
0 – +60 (–20 with dry air) °C
ATEX Available
Yes
