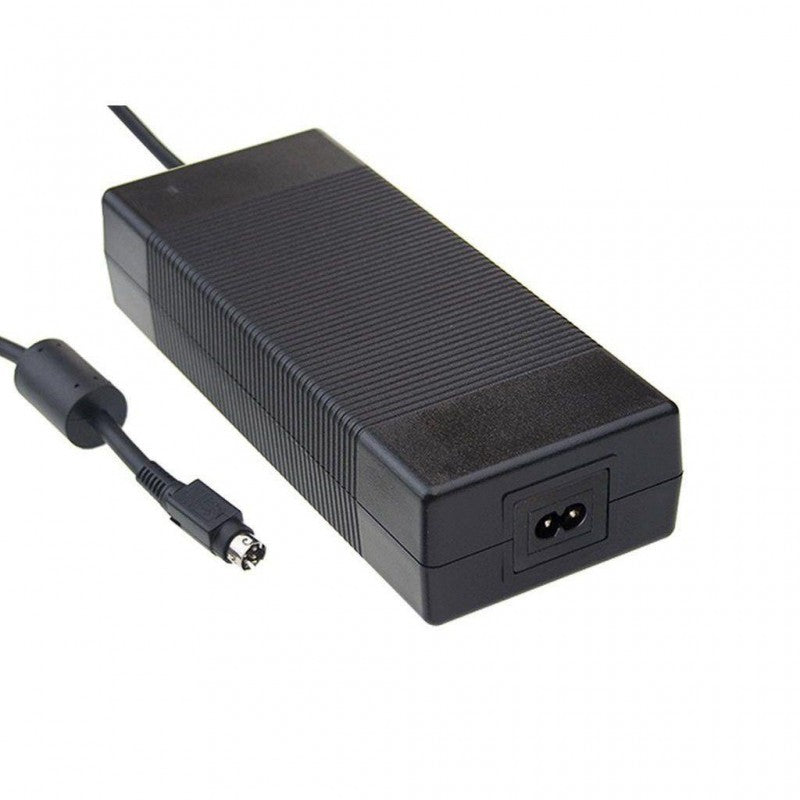

Mean-well AC/DC Adapters GSM220B20-R7B

SKUGSM220B20-R7BBrandMean-well

AED 346.15

Sale Sold out

Shipping calculated at checkout.

Quantity

Mean-well, AC-DC Medical desktop adaptor with Active PFC; Input 2 pin IEC320-C8 socket; Output 20VDC at 11A with DIN 4 pin plug with lock; EN60601 2xMOPP; Class I

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Mean Well
Adapter Type: Power Brick Adapter
Output Voltage: 20V dc
Input Voltage: 80 ? 264V ac
Output Current: 0 ? 11A
Maximum Temperature: +70°C
Output Connector: DC Plug
Input Connector: IEC 320-C8
Number of Outputs: 1
Power Rating: 220W
Cable Length: 1000mm
Medical Approved: Yes

MTBF: 208.66kh
Standards Met: ANSI/AAMI ES60601-1/ES60601-1-11, AU/NZ MEPS, CB, CE Certified, CoC Version 5, cUL Listed, cULus Recognized, EISA 2007/DoE, EN 55011(CISPR11) class B, EN 55024, EN 60601-1-2, EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, EN 61204-3, EU ErP, FC, FCC Part 15 class B, IEC 320-C8, MIL-HDBK-217F, NRCan, PFC, TUV EN 60601-1, TUV EN 60601-1-11, TUV Rheinland Certified, VI
Better World Verification: UL Energy Verified
Better World Product (Find out more): Find out more
Line Regulation Range: -1 ? +1%
Length: 210mm
Series: GSM220B
Depth: 46mm
Minimum Temperature: -30°C
Width: 85mm
Energy Efficiency Level: VI
Load Regulation: -4 ? +4%
