Mean-well AC/DC Adapters GSM220A20-R7B

SKUGSM220A20-R7BBrandMean-well

AED 346.15

Sale Sold out

Shipping calculated at checkout.

Quantity

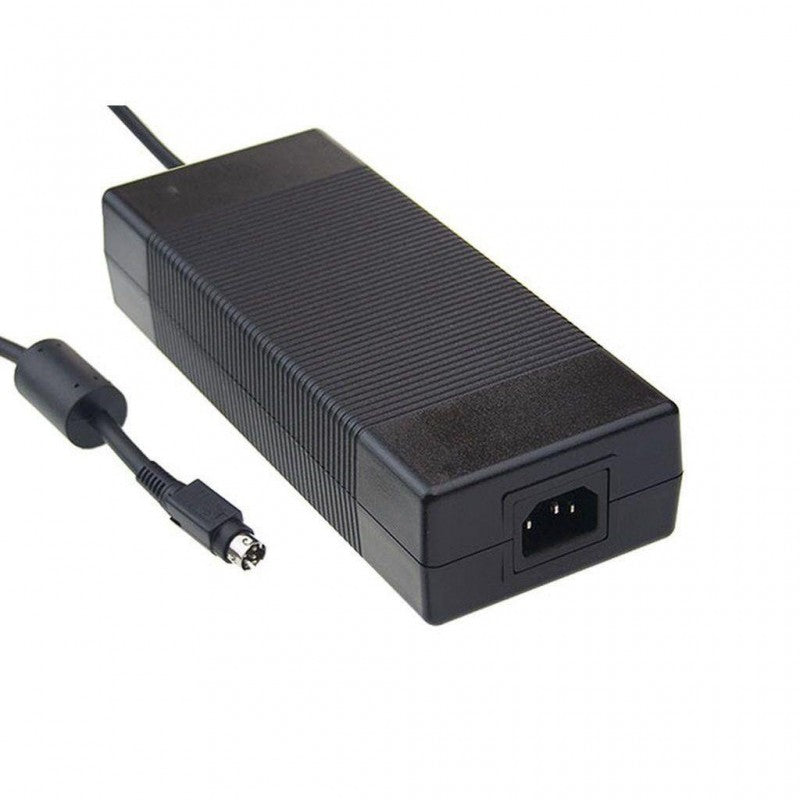

Mean-well, AC-DC Medical desktop adaptor with Active PFC; Input 3 pin IEC320-C14 socket; Output 20VDC at 11A with DIN 4 pin plug with lock; EN60601 2xMOPP; Class I

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Mean Well
Adapter Type: Power Brick Adapter
Output Voltage: 20V dc
Input Voltage: 90 ? 264V ac
Output Current: 0 ? 11A
Maximum Temperature: +70°C
Output Connector: 4-Pin Power DIN
Input Connector: IEC 320-C14
Number of Outputs: 1
Power Rating: 220W
Cable Length: 1000mm
Medical Approved: Yes

Better World Verification: UL Energy Verified
MTBF: 208.66kh
Better World Product (Find out more): Find out more
Standards Met: AU/NZ MEPS, CE, CoC Version 5, cUL, cULus Recognised, EISA 2007/DOE, EN 55011 Class B, EN 55024, EN 60601-1-2, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61204-3, EU ErP, FCC PART 15 Class B, MIL-HDBK-217F, NRCan, PFC, TUV Rheinland EN 60601-1, TUV Rheinland IEC 60601-1
Depth: 46mm
Load Regulation: ±4%
Line Regulation Range: ±1%
Minimum Temperature: -30°C
Energy Efficiency Level: VI
Width: 85mm
Series: GSM220A
Length: 210mm
