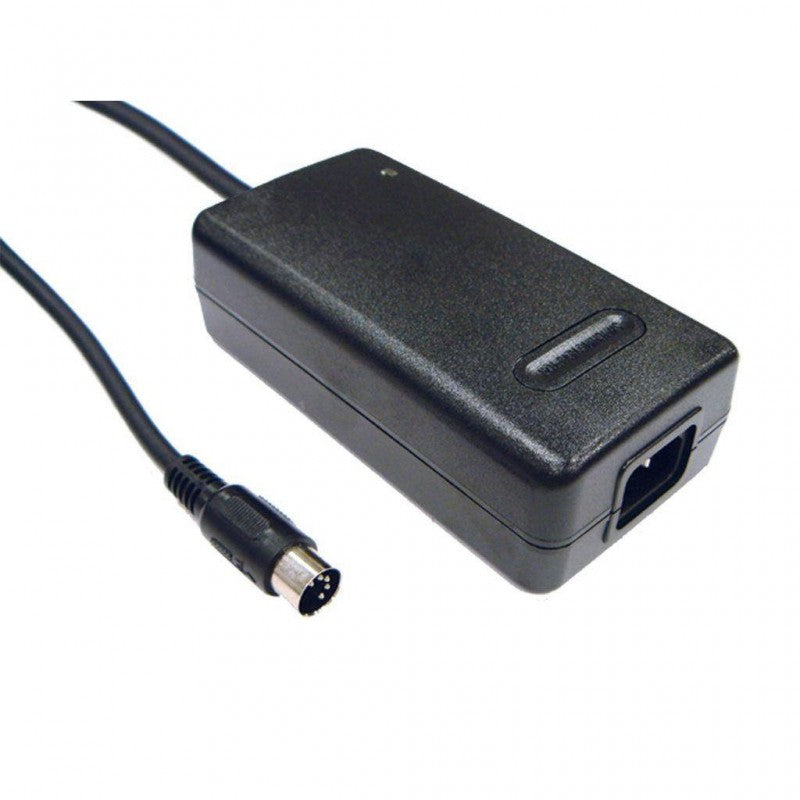

Mean-well AC/DC Adapters GP50A14E-R1B

SKUGP50A14E-R1BBrandMean-well

AED 181.32

Sale Sold out

Shipping calculated at checkout.

Quantity

Mean-well, AC-DC Triple Output Desktop Industrial adaptor; Input with 3 pole IEC320-C14 socket Output 5VDC at 4A; 15VDC at 1.5A; -15VDC at 0.5A with DIN 5 pin plug: Class I

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Mean Well
Adapter Type: Power Brick Adapter
Output Voltage: -15 V dc, 5 V dc, 15V dc
Input Voltage: 80 ? 264V ac
Output Current: (5 V dc) 0 ? 4 A, (-15 V dc) 0.1 ? 0.5 A, (15 V dc) 0.3 ? 1.5A
Maximum Temperature: +70°C
Output Connector: 5-Pin DIN Connector
Input Connector: IEC 320-C14
Number of Outputs: 3
Power Rating: 50W
Cable Length: 1000mm

Efficiency: 85%
MTBF: 280kh
Standards Met: CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1
Width: 75.5mm
Depth: 43mm
Minimum Temperature: -20°C
Energy Efficiency Level: VI
Load Regulation: ±3 % @ 15 V dc, ±5 % @ -15 V dc, ±5 % @ 5V dc
Line Regulation Range: ±1%
Series: GP50A-T
Length: 146mm
