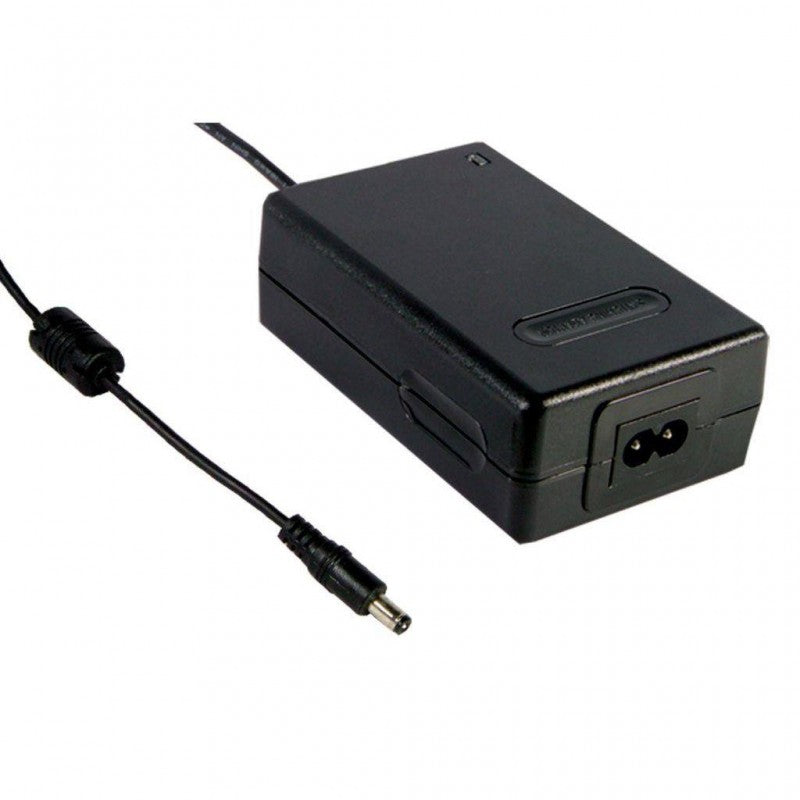

Mean-well AC/DC Adapters GP25B14E-R1B

SKUGP25B14E-R1BBrandMean-well

AED 127.75

Sale Sold out

Shipping calculated at checkout.

Quantity

Mean-well, AC-DC Triple Output Desktop Industrial adaptor; Input with 2 pole IEC320-C14 socket Output 5VDC at 2.5A; 15VDC at 0.8A; -15VDC at 0.3A with DIN 5 pin plug: Class I

View full details

Brand: Mean Well
Adapter Type: Power Brick Adapter
Output Voltage: -15 V dc, 5 V dc, 15V dc
Input Voltage: 80 ? 264V ac
Output Current: (-15 V dc) 0.1 ? 0.3 A, (15 V dc) 0.1 ? 0.8 A, (5 V dc) 0.5 ? 2.5A
Maximum Temperature: +70°C
Output Connector: 4-Pin Power DIN
Input Connector: IEC 320-C14
Number of Outputs: 3
Power Rating: 29W
Cable Length: 1530mm
Standards Met: CB, CE, CSA 22.2, cULus Recognised, EISA 2007/DOE, EN 55022 Class B, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, FCC PART 15/CISP22 Class B, MIL-HDBK-217F, TUV Rheinland, UL 60950-1

Efficiency: 81%
MTBF: 620kh
Series: GP25B-T
Length: 107.5mm
Depth: 36mm
Minimum Temperature: -20°C
Energy Efficiency Level: VI
Load Regulation: ±3 % @ -15 V dc, ±5 % @ 15 V dc, ±5 % @ 5V dc
Line Regulation Range: ±1%
Width: 67mm
Country of Origin: Taiwan, Province Of China
