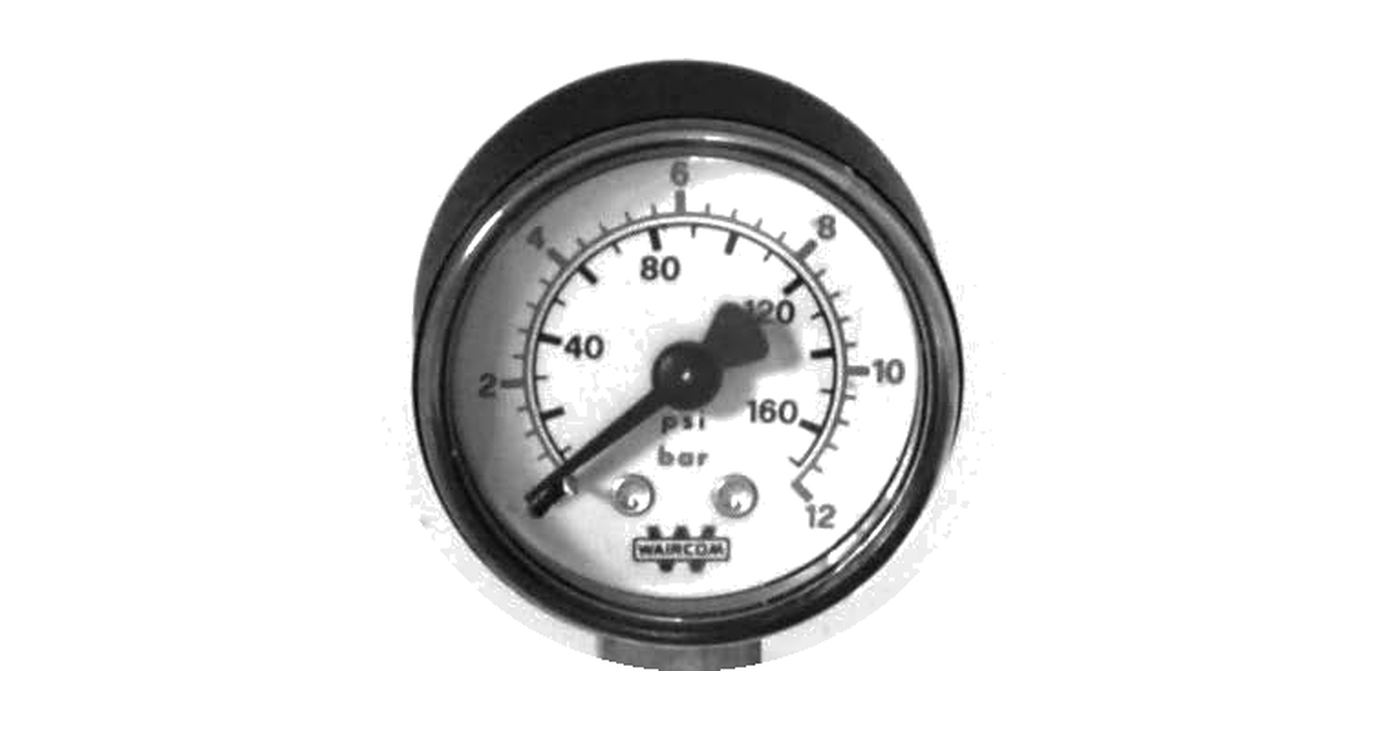

Waircom MA10/12 - MA Series Axial Pressure Gauge (0 ÷ 12 bar Scale x Ø100 mm Dial)

Waircom MA10/12 - MA Series Axial Pressure Gauge (0 ÷ 12 bar Scale x Ø100 mm Dial)

SKUMA10/12BrandWaircom
AED 110.00
AED 110.00
Sale Sold out
Shipping calculated at checkout.

The Waircom MA10/12 is a precision industrial pressure instrument from the reliable MA Series range. Engineered for direct axial mounting, this commercial-grade pressure gauge features a compact Ø100 mm dial diameter and monitors pressure ranges across a 0 ÷ 12 bar scale. Built to Cl. 1.6 (EN 837-1) structural standards, the robust assembly consists of a durable black abs case paired with standard G 3/8 rear pneumatic fluid connections. Designed for versatile process environments, it supports stable operating performance throughout fluid media working temperatures of 0 ÷ +70 (–20 with dry air).

View full details
ParameterValue
Brand
Waircom
Series
MA Series
Gauge Type
Axial
Mounting Type
Direct axial mounting
Dial Diameter
Ø100 mm
Scale
0 ÷ 12 bar
Port Size
G 3/8
Accuracy
Cl. 1.6 (EN 837-1)
ParameterValue
Case Material
Black ABS
Gauge Crystal
Kostil
Port Material
Brass
Spring Material
Copper
Movement Material
Brass
Dial Material
White ABS
Working Temperature
0 ÷ +70 (–20 with dry air)
