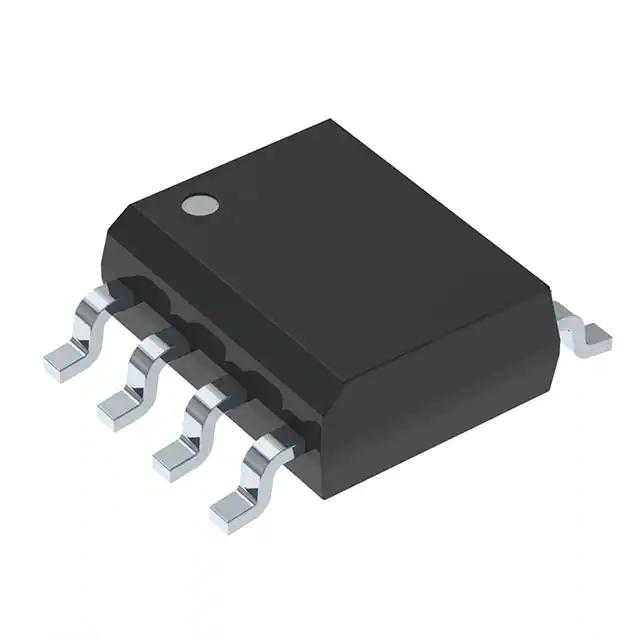

Infineon Gate Drivers 2ED2109S06FXUMA1

Infineon, This is manufactured by Infineon Technologies. The manufacturer part number is 2ED2109S06FXUMA1. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40 °c ~ 125 °c (ta) operating temperature range. It carries non-inverting input type. Moreover, the product comes in 8-soic (0.154, 3.90mm width). Features a peak output current of 290ma, 700ma. The typical rise and fall time of the product is 100ns, 35ns. In addition, it is reach unaffected. It is a igbt, n-channel mosfet gate. It is shipped in tape & reel (tr) package . The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 2 (1 year). The maximum high side voltage is 650 v . Logic voltage of 1.1v, 1.7v. It has a half-bridge driven configuration. The product is available in surface mount configuration. pg-dso-8-53 is the supplier device package value. Number of Drivers equals 1. It has optimum voltage supply of 10v ~ 20v. Moreover, it corresponds to 2ed2109, a base product number of the product. The product is designated with the ear99 code number.
