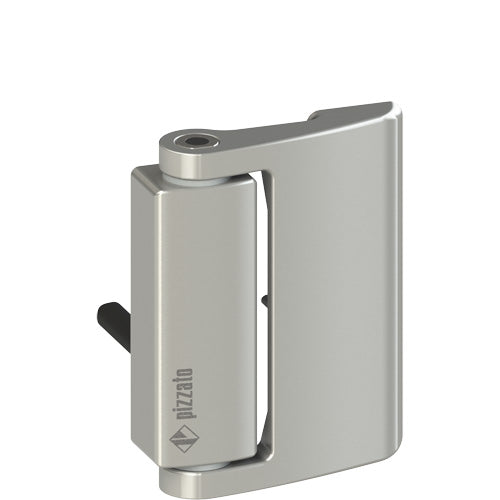

HP AB050F-2PN - Metal, powder-coated Safety Interlock Switch with Mechanical interlock, not coded Lock

Name: HP AB050F-2PN - Metal, powder-coated Safety Interlock Switch with Mechanical interlock, not coded Lock
Brand: Pizzato
SKU: HP AB050F-2PN
Price: 276.00 AED
Availability: InStock

SKUHP AB050F-2PNBrandPizzato

AED 276.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The HP AB050F-2PN is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal, powder-coated housing and a hinge lock style, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 2nc safety contacts for dependable safety circuit integration and utilizes a standard cable 2m (back, pvc) connection type for straightforward installation. This mechanical interlock, not coded accessory is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: Hinge
Lock Style: Hinge
Normal State Configuration: 1NO+2NC snap action
Lock Type: Mechanical interlock, not coded
Actuator Included: Yes
Safety Contacts: 2NC
Maximum AC Voltage: 250V AC
Maximum DC Voltage: 250V DC
Connection Type: Cable 2m (back, PVC)
Housing Material: Metal, Powder Coated
Range: HP-HC

IP Rating: IP67, IP69K
Number of Head Directions: 1
Dimensions: 100x75mm movable part
Series: HP-HC
Maximum Operating Temperature: +80°C
Standards Met: IEC 60947-5-1, EN 60947-5-1, EN ISO 14119, IEC 60204-1, EN ISO 12100, IEC 60529, UL 508, CSA C22.2 No. 14, GB/T14048.5, ISO 20653
Minimum Operating Temperature: -25°C
Length: 100mm
Auxiliary Contacts: 1NO
Width: 75mm
Maximum Current: 6A
