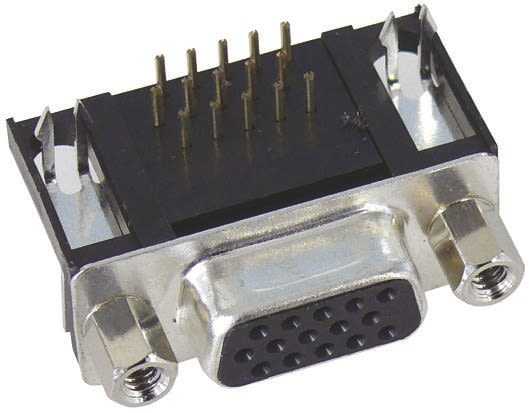

Harting D Sub Connectors 9561527612

Harting D Sub Connectors 9561527612

Regular price AED 12.73
Regular price Sale price AED 12.73
Sale Sold out
Shipping calculated at checkout.

Harting, D-SUB HD FE RA 15P PL3_4-40 NUT AND

View full details
SKU 9561527612 Brand Harting
  • Same-day dispatch

    Order before 2 PM UAE

  • Authorised distributor

    100% genuine parts

  • Volume pricing

    Bulk quotes within 24h

  • 7-day returns

    Sealed, unused items

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Harting
  • Number Of Contacts: 15
  • Gender: Female
  • Body Orientation: Right Angle
  • Mounting Type: Through Hole
  • Pitch: 2.29mm
  • D Connector Type: High Density D-Sub
  • Termination Method: Solder
  • Mounting Hardware: 4-40 UNC Threaded Inserts, Boardlocks
  • Current Rating: 2.0A
  • Housing Material: Steel
  • Length: 30.9mm
  • Width: 23.95mm
  • Depth: 12.5mm
  • Series: D-Sub Standard
  • Dimensions: 30.9 x 23.95 x 12.5mm
  • Contact Material: Copper Alloy
  • Contact Plating: Gold
  • Series Number: 0956
  • Minimum Operating Temperature: -55.0°C
  • Maximum Operating Temperature: +105°C
  • Country of Origin: China
