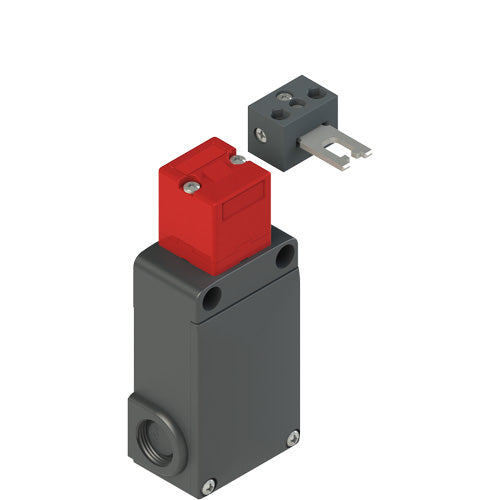

FS 1896E120-F3 - Solenoid Interlock Switch with Power to lock, 120Vac/dc

Name: FS 1896E120-F3 - Solenoid Interlock Switch with Power to lock, 120Vac/dc
Brand: Pizzato
SKU: FS 1896E120-F3
Price: 393.00 AED
Availability: InStock

SKUFS 1896E120-F3BrandPizzato

AED 393.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The FS 1896E120-F3 is a highly reliable solenoid interlock switch engineered for secure access control on industrial machine guards. Enclosed in a durable Glass fibre reinforced technopolymer housing, this switch utilizes a Power to lock mechanism. With a Jointed actuator adjustable in two directions actuator and 120Vac/dc supply voltage, it provides fail-safe performance for demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist

Brand: Pizzato
Actuator Type: Jointed Actuator Adjustable In Two Directions
Normal State Configuration: Locked actuator with energised solenoid
Actuator Included: Yes
Safety Contacts: 1NO+1NC
Maximum AC Voltage: 500V
Maximum DC Voltage: 600V
Housing Material: Glass Fibre Reinforced Technopolymer
Power to Lock / Unlock: Power To Lock
Supply Voltage: 120V AC/DC

Range: FS series
IP Rating: IP67
Series: FS
Depth: 78mm
Standards Met: IEC 60947-5-1, IEC 60947-1, IEC 60204-1, EN ISO 14119, EN ISO 12100, IEC 60529
Length: 92mm
Auxiliary Contacts: 1NO+1NC
Width: 40mm
