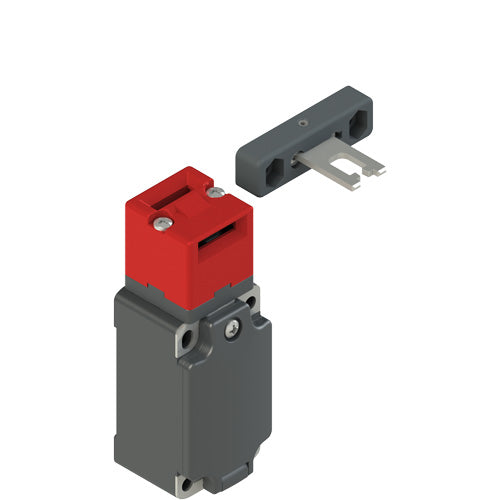

FP 993-F7M2 - Technopolymer Safety Interlock Switch with Jointed Actuator Adjustable in One Direction

Name: FP 993-F7M2 - Technopolymer Safety Interlock Switch with Jointed Actuator Adjustable in One Direction
Brand: Pizzato
SKU: FP 993-F7M2
Price: 108.00 AED
Availability: InStock

SKUFP 993-F7M2BrandPizzato

AED 108.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The FP 993-F7M2 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust technopolymer housing and an ip67 protection rating, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 2nc safety contacts for dependable safety circuit integration and utilizes a standard threaded conduit entry m20x1.5 connection type for straightforward installation. This jointed actuator adjustable in one direction actuator is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: Jointed Actuator Adjustable in One Direction
Normal State Configuration: NC
Actuator Included: Yes
Safety Contacts: 2NC
Maximum AC Voltage: 400V
Maximum DC Voltage: 600V
Connection Type: Threaded Conduit Entry M20x1.5
Housing Material: Technopolymer

IP Rating: IP67
Series: FP Series
Maximum Operating Temperature: +80°C
Depth: 78mm
Standards Met: EN 60947-5-1, EN ISO 14119, EN ISO 12100, IEC 60529, UL 508, CSA C22.2 No. 14, GB/T14048.5
Minimum Operating Temperature: -25°C
Length: 32mm
Width: 40mm
Maximum Current: 10A
