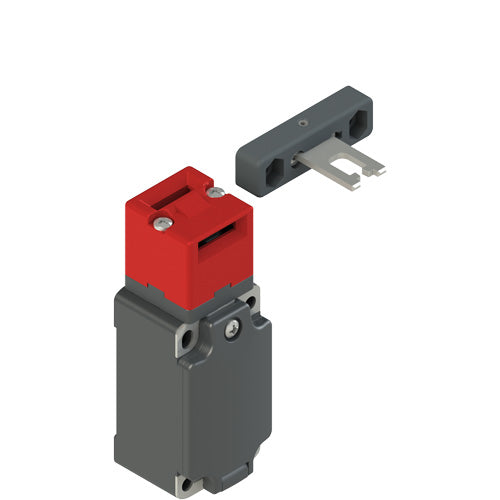

FP 693-F7M2 - Technopolymer Safety Interlock Switch with Jointed Actuator Adjustable in One Direction

Name: FP 693-F7M2 - Technopolymer Safety Interlock Switch with Jointed Actuator Adjustable in One Direction
Brand: Pizzato
SKU: FP 693-F7M2
Price: 105.00 AED
Availability: InStock

SKUFP 693-F7M2BrandPizzato

AED 105.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The FP 693-F7M2 is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust technopolymer housing and an ip67 protection rating, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 1no+1nc safety contacts for dependable safety circuit integration and utilizes a standard threaded conduit entry m20x1.5 connection type for straightforward installation. This jointed actuator adjustable in one direction actuator is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: Jointed Actuator Adjustable in One Direction
Normal State Configuration: NO+NC
Actuator Included: Yes
Safety Contacts: 1NO+1NC
Maximum AC Voltage: 400V
Maximum DC Voltage: 600V
Connection Type: Threaded Conduit Entry M20x1.5
Housing Material: Technopolymer

IP Rating: IP67
Series: FP Series
Maximum Operating Temperature: +80°C
Depth: 78mm
Standards Met: EN 60947-5-1, EN ISO 14119, EN ISO 12100, IEC 60529, UL 508, CSA C22.2 No. 14, GB/T14048.5
Minimum Operating Temperature: -25°C
Length: 32mm
Width: 40mm
Maximum Current: 10A
