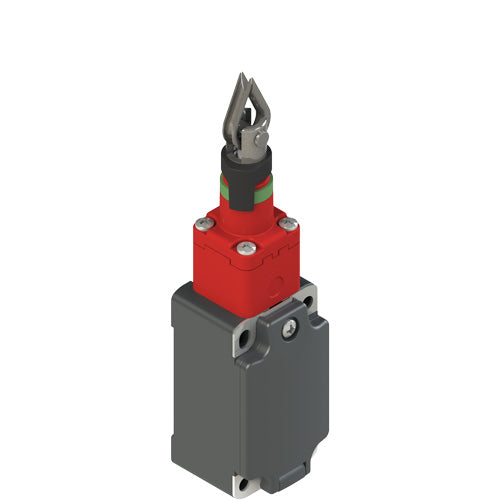

FP 2179-M2 Pizzato Longitudinal head Technopolymer M20x1.5 threaded conduit entry Limit Switch 65mm*30mm

FP 2179-M2 Pizzato Longitudinal head Technopolymer M20x1.5 threaded conduit entry Limit Switch 65mm*30mm

AED 87.00
AED 87.00
Sale Sold out
Shipping calculated at checkout.

The Pizzato FP 2179-M2 is a reliable industrial limit switch designed with a longitudinal head actuator. Engineered for durability, it features a technopolymer housing to withstand demanding environments.
View full details

Specifications

  • Brand: Pizzato
  • IP Rating: IP67
  • Series: FD/FL/FP
  • Maximum Operating Temperature: +80°C
  • Minimum Operating Temperature: -25°C
  • Length: 65mm
  • Width: 30mm
  • Depth: 40mm
  • Housing Material: Technopolymer
  • Action Type: Slow Action
  • Actuator Type: Longitudinal Head
  • Connection Type: M20x1.5 Threaded Conduit Entry
  • Contact Type: Silver contacts
  • Maximum AC Voltage: 400V
  • Maximum Current: 10A
  • Maximum DC Voltage: 250V
  • Mechanical Life: 100,000 cycles
  • Mounting Orientation: Longitudinal
  • Normal State Configuration: 3NC
  • Output Type: Electromechanical
  • Pole and Throw Configuration: TPST
  • Standards Met: IEC 60947-5-1, EN 60947-5-1, IEC 60947-1, IEC 60204-1, EN ISO 14119, EN ISO 12100, IEC 60529, EN IEC 63000, UL 508, CSA C22.2 No. 14, GB/T14048.5, Low Voltage Directive 2014/35/EU, EMC Directive 2014/30/EU, RoHS Directive 2011/65/EU
