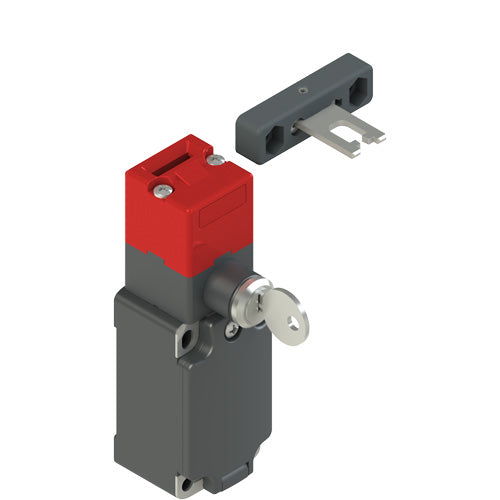

FP 2099-F7M2 Pizzato Jointed adjustable in one direction Technopolymer M20x1.5 conduit entry Limit Switch 60mm*40mm

Name: FP 2099-F7M2 Pizzato Jointed adjustable in one direction Technopolymer M20x1.5 conduit entry Limit Switch 60mm*40mm
Brand: Pizzato
SKU: FP 2099-F7M2
Price: 164.00 AED
Availability: InStock

SKUFP 2099-F7M2BrandPizzato

AED 164.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The Pizzato FP 2099-F7M2 is a reliable industrial limit switch designed with a jointed adjustable in one direction actuator. Engineered for durability, it features a technopolymer housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
IP Rating: IP67
Series: VF KEY
Maximum Operating Temperature: +80°C
Minimum Operating Temperature: -25°C
Length: 60mm
Width: 40mm
Depth: 60mm
Housing Material: Technopolymer
Actuator Type: Jointed Adjustable In One Direction

Connection Type: M20x1.5 Conduit Entry
Contact Type: 1NO+2NC
Maximum AC Voltage: 500V
Maximum Current: 10A
Maximum DC Voltage: 600V
Mechanical Life: 500,000 cycles
Normal State Configuration: 1NO+2NC
Pole and Throw Configuration: 1NO+2NC
Standards Met: EN 60947-5-1, IEC 60947-5-1, EN ISO 14119, UL 508, CSA C22.2 No.14, GB/T14048.5
