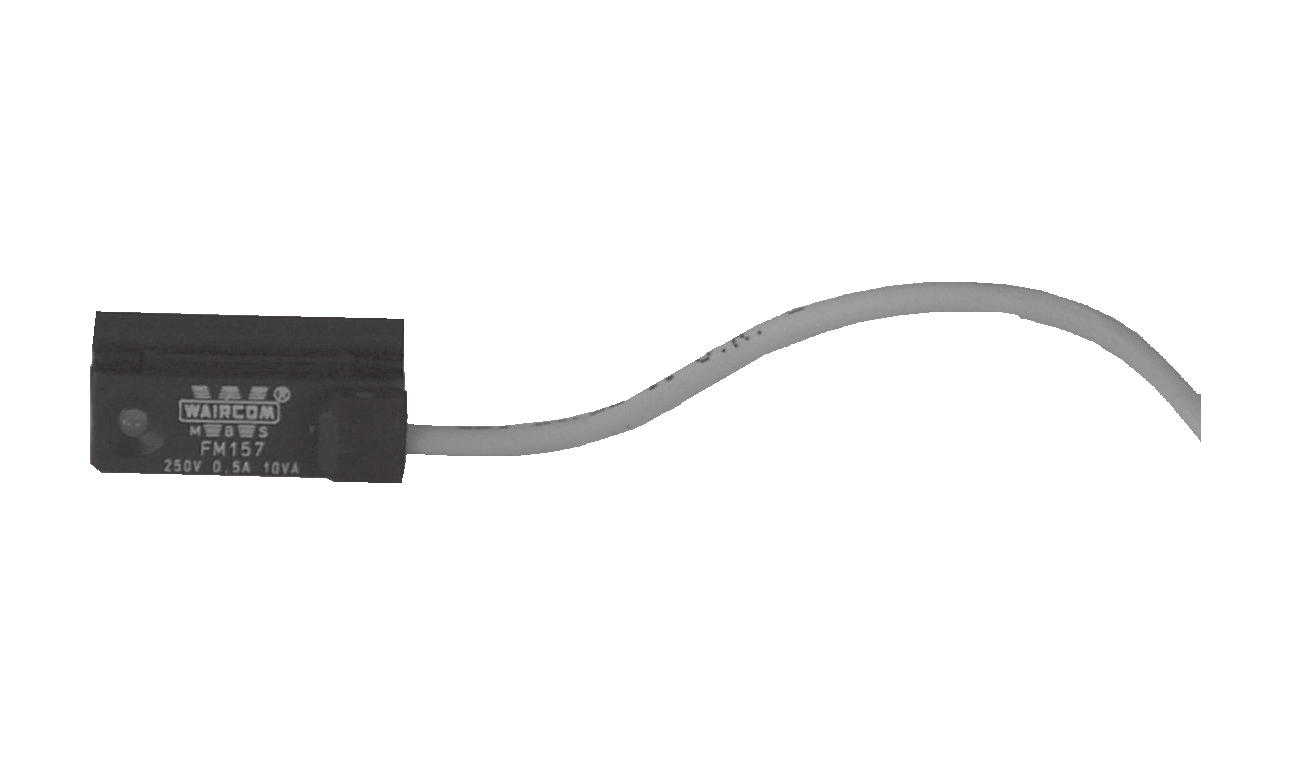

Waircom FM157 - Series FM157 Magnetic Reed Sensor (2.5 m Cable, IP67)

The Waircom FM157 is an industrial pneumatic cylinder sensor belonging to the Series FM157 product range. Functioning as a 2-wire, Normally Open (N.O.) magnetic reed switch, this component tracks piston placement across automated setups. It integrates directly into standard T-slot / C-slot cylinder channels, utilizing a robust polyamide + stainless steel + brass composite housing. The sensor supports a wide operating voltage range from 3 ÷ 250 V AC/DC and handles a max exchange current of 1500 mA. Supplied with a 2.5 m pre-wired Integrated cable, it provides an IP67 protection class for stable operation in heavy-duty environments.
