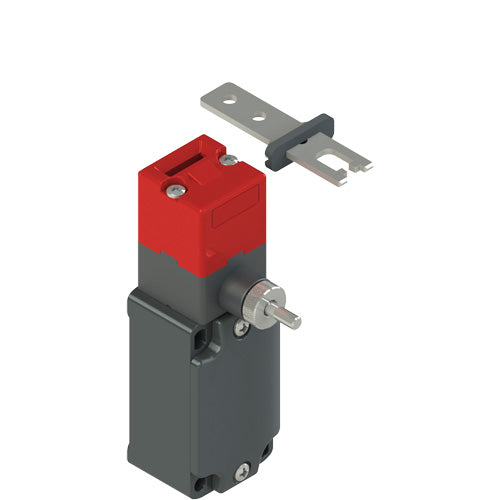

FD 21R2-F - Metal Safety Interlock Switch with Mechanical time delay lock

Name: FD 21R2-F - Metal Safety Interlock Switch with Mechanical time delay lock
Brand: Pizzato
SKU: FD 21R2-F
Price: 147.00 AED
Availability: InStock

SKUFD 21R2-FBrandPizzato

AED 147.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The FD 21R2-F is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust metal housing and a manual mechanical delay 20 seconds (standard short knob) lock style, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 3nc safety contacts for dependable safety circuit integration and utilizes a standard m20x1.5 conduit entry connection type for straightforward installation. This mechanical time delay lock accessory is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: Straight actuator VF KEYF
Lock Style: Manual Mechanical Delay 20 Seconds (standard Short Knob)
Normal State Configuration: 3NC
Lock Type: Mechanical time delay lock
Actuator Included: No (sold separately)
Safety Contacts: 3NC
Maximum AC Voltage: 400V
Maximum DC Voltage: 250V
Connection Type: Threaded Conduit Entry M20x1.5
Housing Material: Metal

IP Rating: IP67
Dimensions: 78mmx30x60mm
Series: FD/FP R2
Maximum Operating Temperature: +80°C
Depth: 60mm
Standards Met: EN 60947-5-1, IEC 60947-5-1, EN ISO 14119, IEC 60947-1, IEC 60204-1, EN ISO 12100, IEC 60529, EN IEC 63000, UL 508, CSA C22.2 No. 14, GB/T14048.5; IMQ: EG605; UL: E131787; CCC: 2024010305654835; EAC: RU Д-IT.PA07.В.37848/24
Minimum Operating Temperature: -25°C
Length: 78mm
Auxiliary Contacts: Yes
Width: 30mm
Maximum Current: 10A
