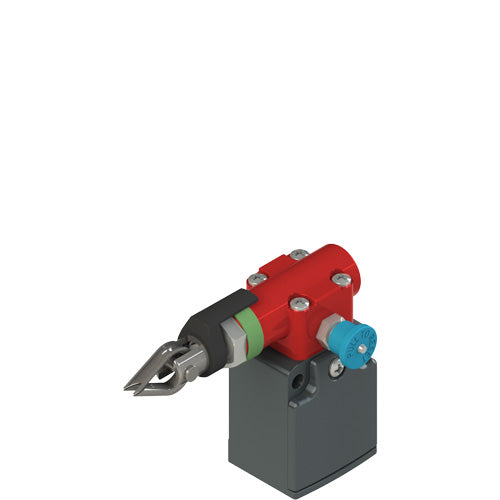

FC 3483-M2 Pizzato Left transversal rope pull Metal M20x1.5 conduit entry Limit Switch 56mm*30mm

Name: FC 3483-M2 Pizzato Left transversal rope pull Metal M20x1.5 conduit entry Limit Switch 56mm*30mm
Brand: Pizzato
SKU: FC 3483-M2
Price: 147.00 AED
Availability: InStock

SKUFC 3483-M2BrandPizzato

AED 147.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The Pizzato FC 3483-M2 is a reliable industrial limit switch designed with a left transversal rope pull actuator. Engineered for durability, it features a metal housing to withstand demanding environments.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
IP Rating: IP67
Series: FC
Maximum Operating Temperature: +80°C
Minimum Operating Temperature: -25°C
Length: 56mm
Width: 30mm
Depth: 45.5mm
Housing Material: Metal
Action Type: Slow Action
Actuator Type: Left Transversal Rope Pull

Connection Type: M20x1.5 Conduit Entry
Contact Type: 2NC
Maximum AC Voltage: 500 Vac
Maximum Current: 10A
Maximum DC Voltage: 600 Vdc
Mechanical Life: 100,000 operating cycles
Mounting Orientation: Any
Normal State Configuration: 2NC
Output Type: Direct opening action
Pole and Throw Configuration: DPST
Standards Met: EN ISO 13850, IEC 60947-5-1, IEC 60947-5-5, EN 60947-5-1, EN 60947-1, IEC 60204-1, EN ISO 14119, EN ISO 12100, IEC 60529
