• ifm - EVCB14
1 1

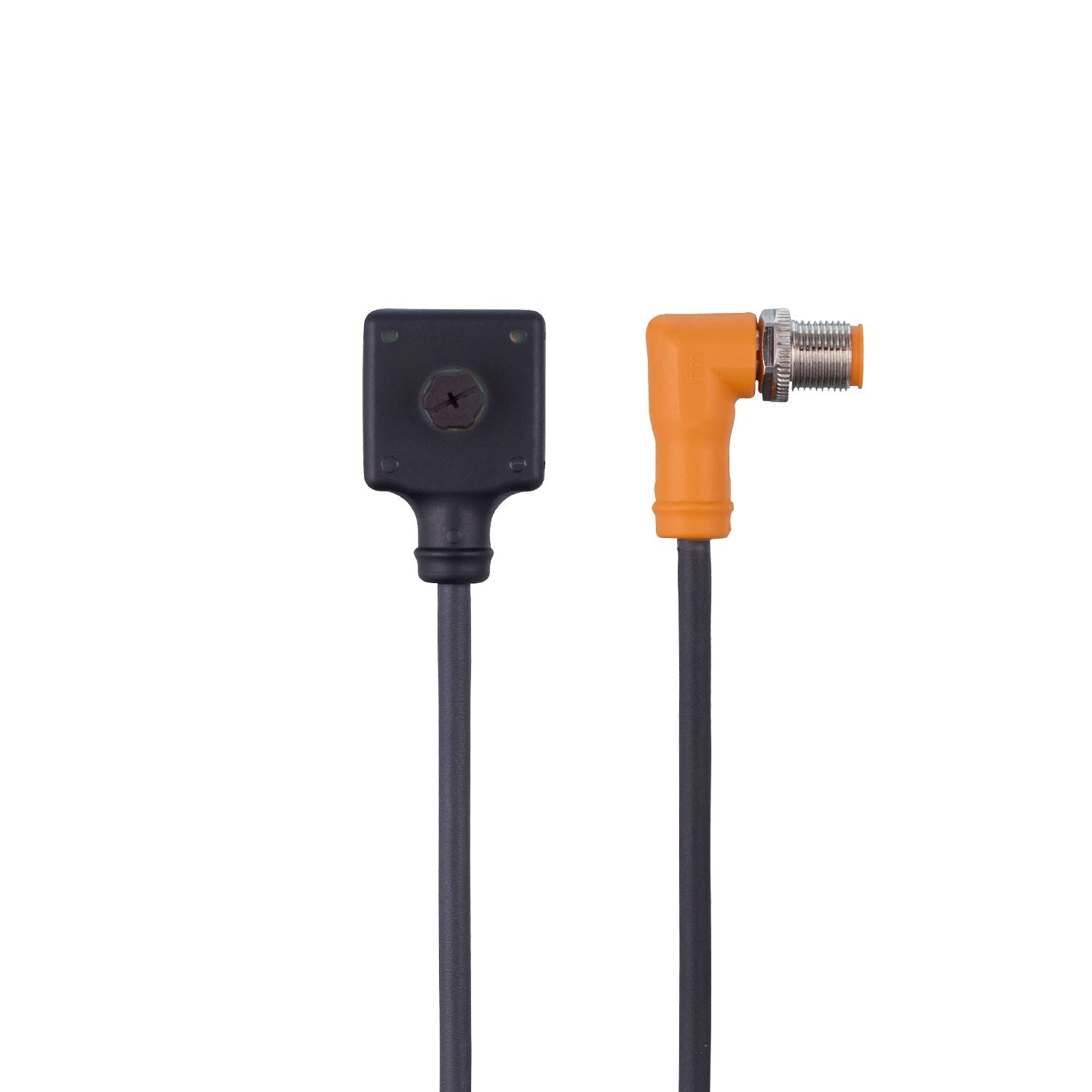

EVCB14 - ifm Sensor & Actuator Cable, 0.3 m

EVCB14 - ifm Sensor & Actuator Cable, 0.3 m

SKUEVCB14Brandifm
AED 98.00
AED 98.00
Sale Sold out
Shipping calculated at checkout.

The EVCB14 is a high-quality sensor and actuator connection cable manufactured by ifm. Part of the Series EVCB14. Measuring 0.3 m in length, it is engineered for reliable signal transmission. With IP67; IP68; IP69K; (plug M12: IP65; IP67; IP68; IP69K) protection, it withstands harsh industrial environments. Connector specs: 1 x M12, angled; coding: A; Moulded body: TPU, orange; Locking: brass, nickel-plated; Contacts: gold-plated; Tightening torque: 0.6...1.5 Nm / 1 x valve type A DIN (EN 175301-803), angled; Moulded body: TPU, black; Sealing: HNBR; Tightening torque: 0.3...0.4 Nm.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: ifm
  • Product Type: Jumper cable with valve plug
  • Cable Length: 0.3 m
  • Connector Type A: M12
  • Connector Gender A: Male
  • Connector 1: 1 x M12, angled; coding: A
  • Connector Type B: Valve Type A
  • Connector Gender B: Female
  • Connector 2: 1 x valve type A DIN (EN 175301-803), angled
  • Jacket Material: PUR
  • IP Rating: IP67; IP68; IP69K; (plug M12: IP65; IP67; IP68; IP69K)
  • Min Operating Temp: -20°C
  • Max Operating Temp: 90°C
