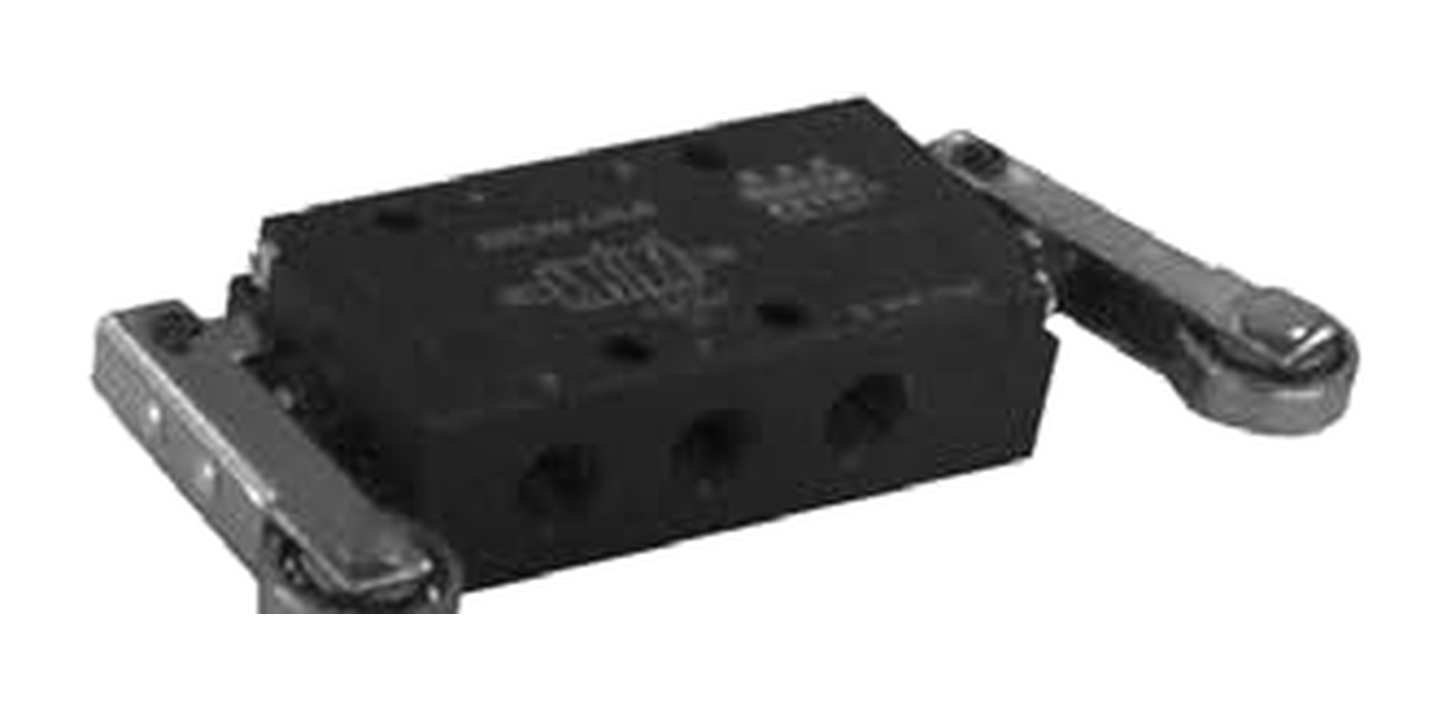

• Waircom - EKCA4/LRLRN
1 1

Waircom EKCA4/LRLRN - Series EK 5/2 bistable Mechanical Valve (G 1/4)

Waircom EKCA4/LRLRN - Series EK 5/2 bistable Mechanical Valve (G 1/4)

SKUEKCA4/LRLRNBrandWaircom
AED 237.00
AED 237.00
Sale Sold out
Shipping calculated at checkout.

The Waircom EKCA4/LRLRN is an industrial 5/2 bistable valve belonging to the Series EK line. Built for demanding automation environments, this pneumatic component relies on a G 1/4 port thread and a Ø 8 mm nominal diameter to deliver accurate fluid management. It features a roller lever pilot control design with a roller lever to manage system routing switches smoothly. Structural construction consists of an Anodized aluminium alloy housing paired with an Anodized aluminium alloy spool and NBR rubber seals. Standard mechanical connections include a G 1/4 connection thread configuration, a 16 N actuation force requirement, and it supports an operating pressure range of 0-10 bar direct / 3-10 bar assisted actuation, fully meeting standard technical operating specifications.

View full details
ParameterValue
Brand
Waircom
Series
Series EK
Function
5/2 bistable
Pilot (Control)
Roller lever
Return
Roller lever
Port Thread
G 1/4
Nominal Diameter
Ø 8 mm
ParameterValue
Flow Rate
900 Nl/min at 6 bar
Actuation Force
16 N at 6 bar
Body Material
Anodized aluminium alloy
Spool Material
Anodized aluminium alloy
Seals
NBR rubber
Operating Pressure
0-10 bar direct / 3-10 bar assisted actuation
Working Temperature
0 to +60 °C (-20 °C with dry air)
