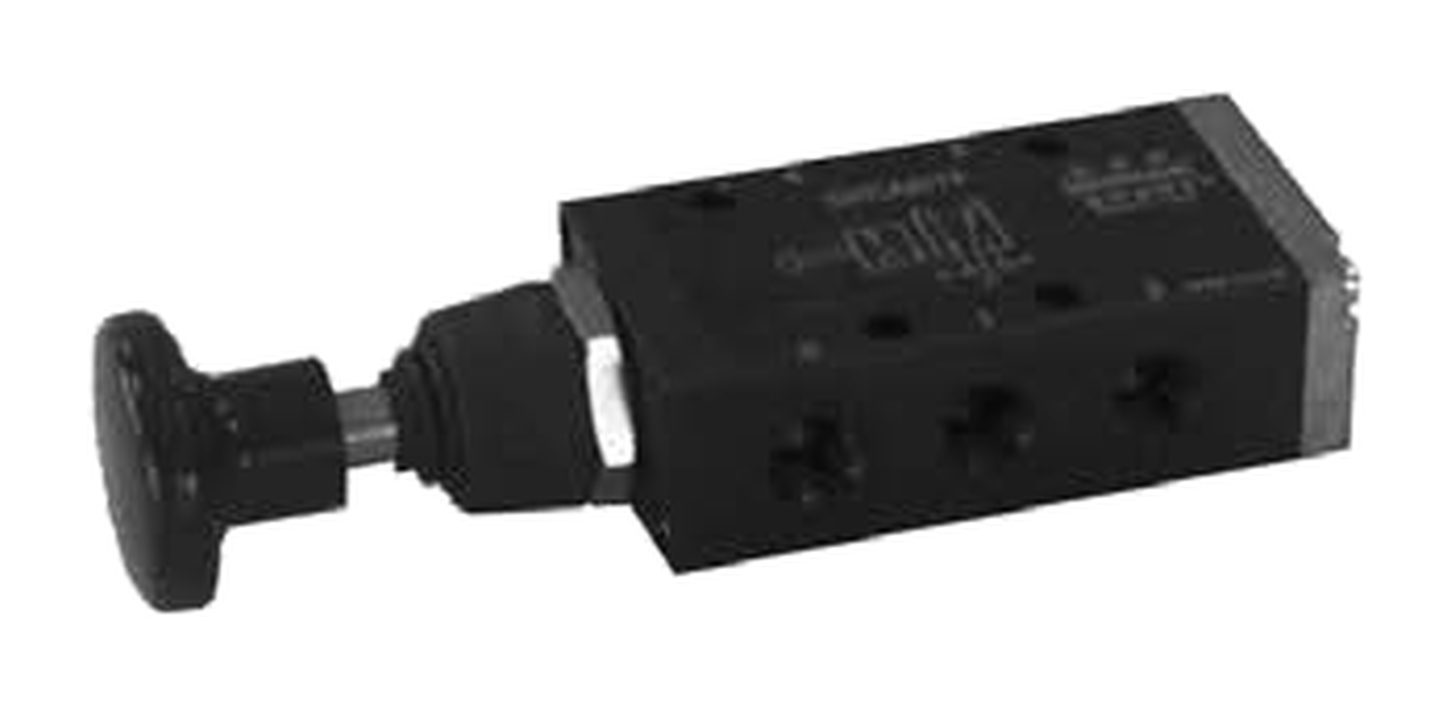

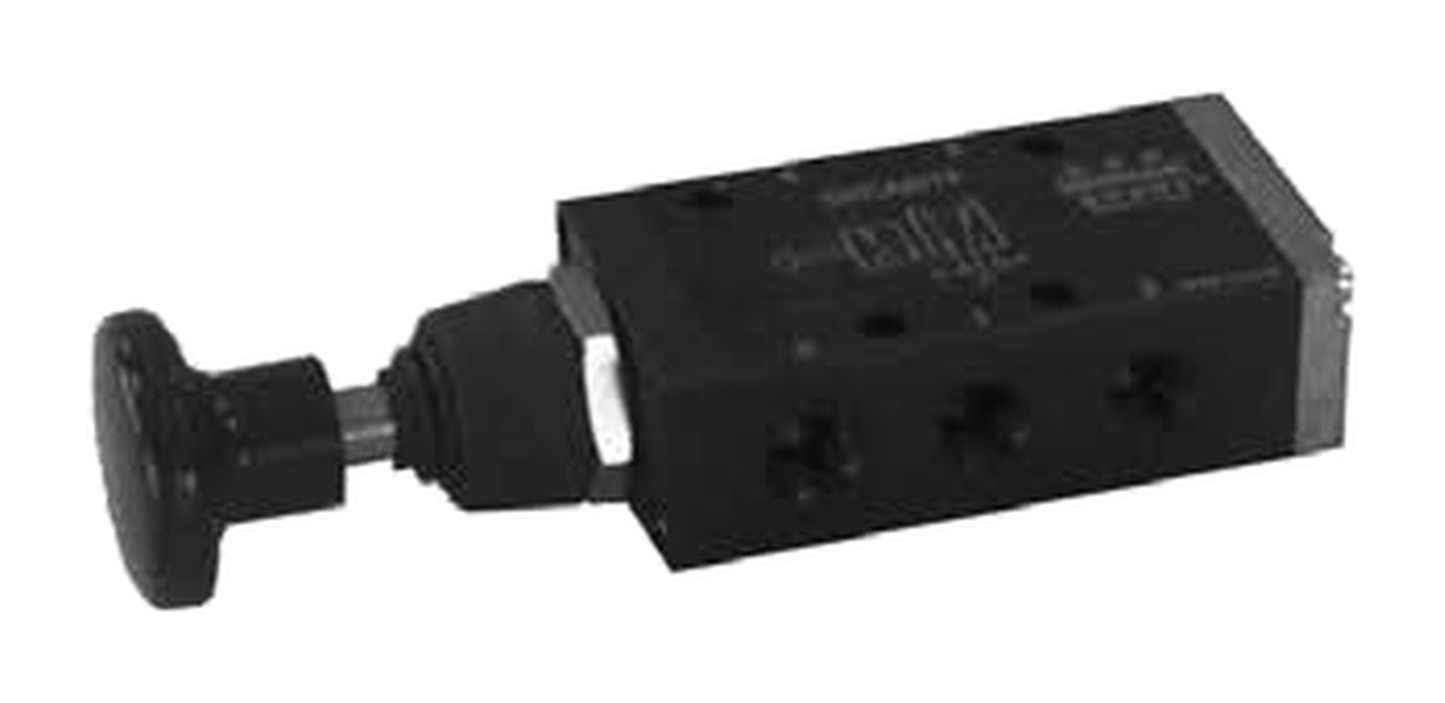

Waircom EK8/TF - Series EK 3/2 bistable Mechanical Valve (G 1/8)

The Waircom EK8/TF is an industrial 3/2 bistable valve belonging to the Series EK line. Built for demanding automation environments, this pneumatic component relies on a G 1/8 port thread and a Ø 5 mm nominal diameter to deliver accurate fluid management. It features a drawer pilot control design with a drawer to manage system routing switches smoothly. Structural construction consists of an Anodized aluminium alloy housing paired with an Anodized aluminium alloy spool and NBR rubber seals. Standard mechanical connections include a G 1/8 connection thread configuration, a working temperature range of 0 to +60 °C (-20 °C with dry air), and it supports an operating pressure range of 0-10 bar direct / 3-10 bar assisted actuation, fully meeting standard technical operating specifications.
