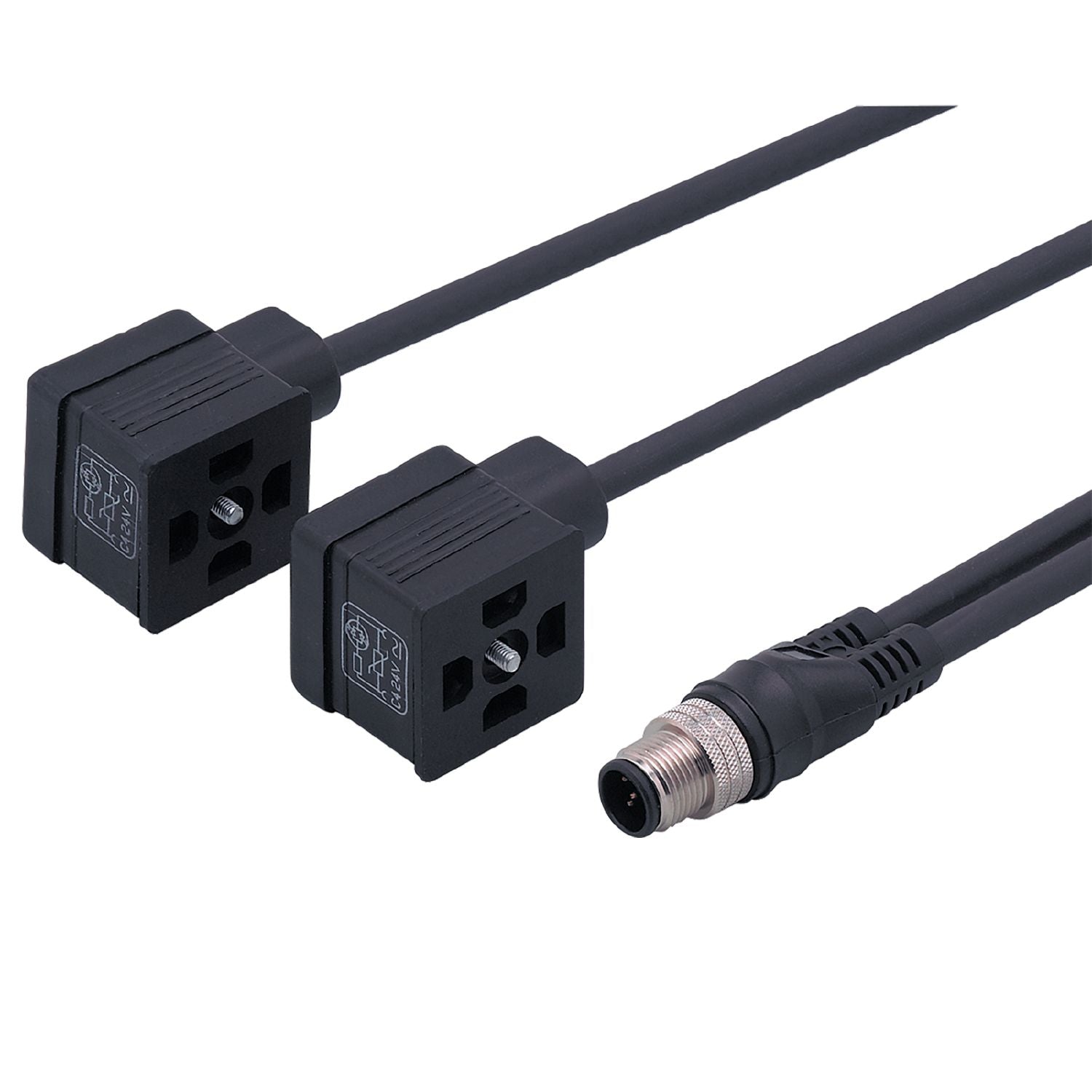

E70203 - ifm Sensor & Actuator Cable, 1 m

E70203 - ifm Sensor & Actuator Cable, 1 m

AED 312.00
AED 312.00
Sale Sold out
Shipping calculated at checkout.

The E70203 is a high-quality sensor and actuator connection cable manufactured by ifm. Part of the Series E70203. Measuring 1 m in length, it is engineered for reliable signal transmission. With IP65 protection, it withstands harsh industrial environments. Connector specs: 1 x M12, straight; coding: A; Moulded body: TPU; Locking: brass, nickel-plated / 2 x valve type A DIN, angled; Moulded body: TPU; Locking: brass, nickel-plated.
View full details

Specifications

  • Brand: ifm
  • Product Type: Y-jumper with valve plug
  • Cable Length: 1 m
  • Connector Type A: Valve Type A
  • Connector Gender A: Female
  • Connector 1: 1 x M12, straight; coding: A
  • Connector Type B: Valve Type A
  • Connector Gender B: Female
  • Connector 2: 2 x valve type A DIN, angled
  • Jacket Material: PUR
  • Jacket Colour: Black
  • IP Rating: IP65
  • Min Operating Temp: -25°C
  • Max Operating Temp: 90°C
