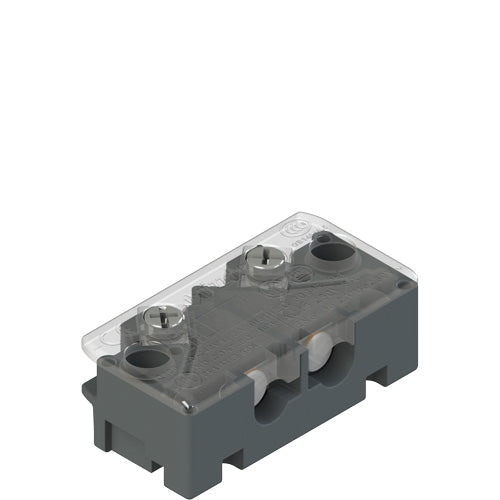

DS AE1VA - Glass fiber reinforced technopolymer Safety Interlock Switch with Straight, Angled Actuator

Name: DS AE1VA - Glass fiber reinforced technopolymer Safety Interlock Switch with Straight, Angled Actuator
Brand: Pizzato
SKU: DS AE1VA
Price: 25.00 AED
Availability: InStock

SKUDS AE1VABrandPizzato

AED 25.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The DS AE1VA is a highly durable safety interlock switch designed to provide reliable access control for industrial machinery. Featuring a robust glass fiber reinforced technopolymer housing and an ip20 protection rating, this switch ensures that hazardous equipment remains secure during operation. It comes equipped with 1nc safety contacts for dependable safety circuit integration and utilizes a standard screw terminals connection type for straightforward installation. This straight, angled actuator is an essential component for maintaining a safe and compliant manufacturing environment.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Pizzato
Actuator Type: Straight, Angled
Normal State Configuration: 1NC
Actuator Included: No
Safety Contacts: 1NC
Maximum AC Voltage: 250V / 400V
Maximum DC Voltage: 250V
Connection Type: Screw Terminals
Housing Material: Glass Fibre Reinforced Technopolymer
IP Rating: IP20

Dimensions: 50 x 25 x 18.5 mm
Series: DS A
Maximum Operating Temperature: +80°C
Depth: 18.5 mm
Standards Met: IEC 60947-5-1, EN 60947-5-1, EN 60947-1, EN 60529, EN ISO 14119, EN 60529, EN 81-20, EN 81-50, UL 508, CSA 22.2 No.14, GB/T14048.5-2017
Minimum Operating Temperature: -30°C
Length: 50 mm
Width: 25 mm
Maximum Current: 6A (250V) / 4A (400V) / 1A (500V)
