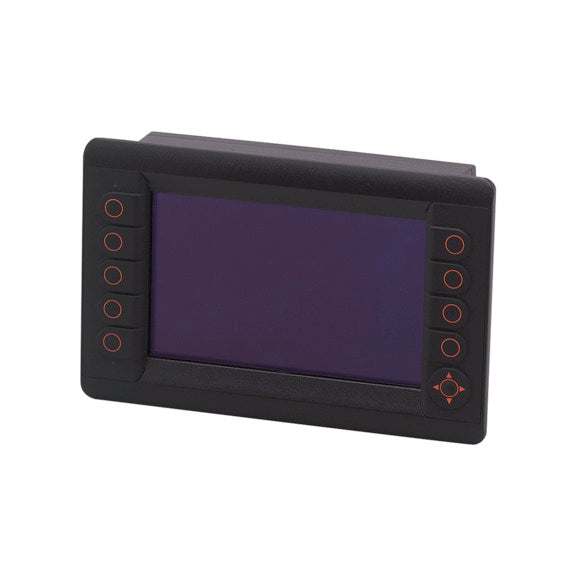

IFM CR1081 Programmable Graphic Display — 7-inch colour HMI for mobile machines, 4x CAN, CODESYS 2.3, 9 function keys. Programmable 7in 800x480 colour display, 9 backlit function keys, 4x CAN + Ethernet + 2x USB, IEC 61131-3 CODESYS 2.3, 10...32 V DC.
MPN / SKU: CR1081
Also known as: IFM CR1081 hmi / display / touch screen.
CR1081 Applications
The IFM CR1081 is a robust programmable graphic display used to control and visualise mobile machines and off-highway vehicles. It is suited for operator dashboards on construction, agricultural and municipal equipment where CAN-based control and rugged HMIs are required. The 7-inch colour display features nine backlit function keys with tactile feedback and a navigation key, four high-performance CAN interfaces for various communication tasks, and USB for data logging. It is freely programmable to IEC 61131-3 with CODESYS 2.3.
CR1081 Specifications
Brand
IFM
Product Type
Programmable graphic display (mobile machines)
IFM Type Code
R360/PDM NG/DialogDisplay
Display
7" colour, 800 x 480, LED backlight
Operating Elements
9 backlit function keys + navigation key
Programming
IEC 61131-3, CODESYS 2.3
CAN Interfaces
4
Ethernet / USB
1 x Ethernet, 2 x USB
I/O
1 x DI, 1 x AI (0-20 mA / 0-32 V), 1 x DO
Operating Voltage
10...32 V DC
Power Consumption
7.2 W
Mounting
Panel / surface
Dimensions
146 x 225 x 64.5 mm
Real-time Clock
Yes
Electrical Connection
M12
Weight
1681 g
CR1081 -- Frequently Asked Questions (FAQ)
What is the IFM CR1081?
IFM CR1081 is a Programmable Graphic Display -- 7-inch colour HMI for mobile machines, 4x CAN, CODESYS 2.3, 9 function keys.
What is the IFM CR1081 used for?
The IFM CR1081 is a robust programmable graphic display used to control and visualise mobile machines and off-highway vehicles.
What are the key specifications of the IFM CR1081?
IFM CR1081 -- Programmable 7in 800x480 colour display, 9 backlit function keys, 4x CAN + Ethernet + 2x USB, IEC 61131-3 CODESYS 2.3, 10...32 V DC.
What output or connection does the IFM CR1081 have?
The IFM CR1081 has -- Connection: M12.
