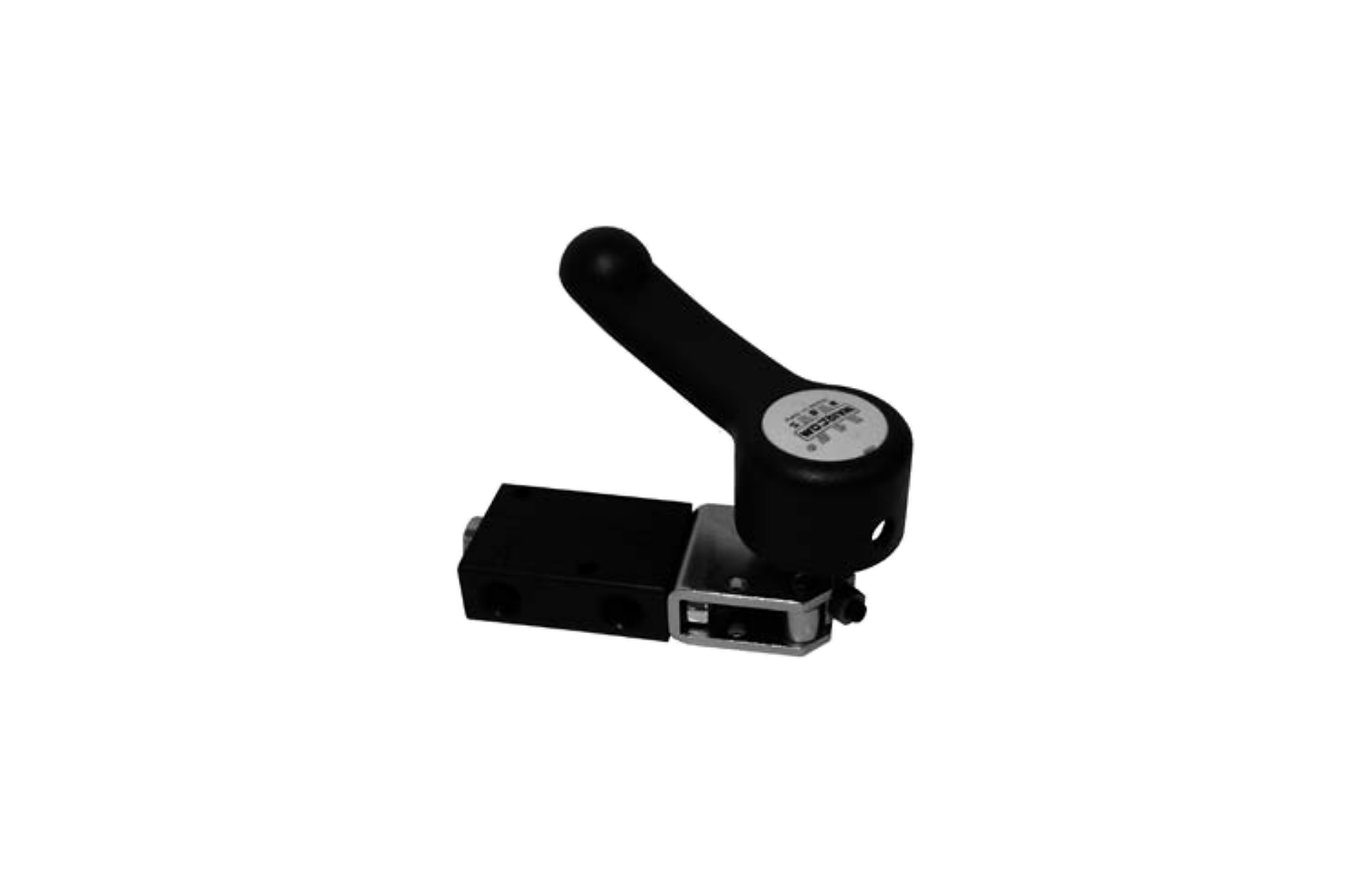

Waircom CAML4 - Series CA Mechanical Valve, 5/2 monostable (G 1/4)

Waircom CAML4 - Series CA Mechanical Valve, 5/2 monostable (G 1/4)

SKUCAML4BrandWaircom
AED 399.00
AED 399.00
Sale Sold out
Shipping calculated at checkout.

The Waircom CAML4 is a 5/2 monostable mechanical valve from the Series CA range. Actuated by a robust hand lever lateral knob, this valve utilizes an anodized aluminium alloy housing paired with a hardened and nickel-plated steel control rod for heavy-duty cycle life. The internal components feature an acetal resin piston and standard NBR seals, allowing reliable operation across pressures from 0 – 12 bar and a temperature range of 0 – +70 (–20 with dry air) °C. Standard piping configurations are handled via a G 1/4 port connection, and ATEX certification is available: Yes.

View full details
ParameterValue
Brand
Waircom
Series
Series CA
Function
5/2 monostable
Control Type
Lateral knob
Actuator Type
Hand Lever
Port Size
G 1/4
Body Material
Anodized aluminium alloy
ParameterValue
Control Rod
Hardened and nickel-plated steel
Seals
NBR
Piston Material
Acetal resin
Operating Pressure
0 – 12 bar
Operating Temperature
0 – +70 (–20 with dry air) °C
ATEX Available
Yes
