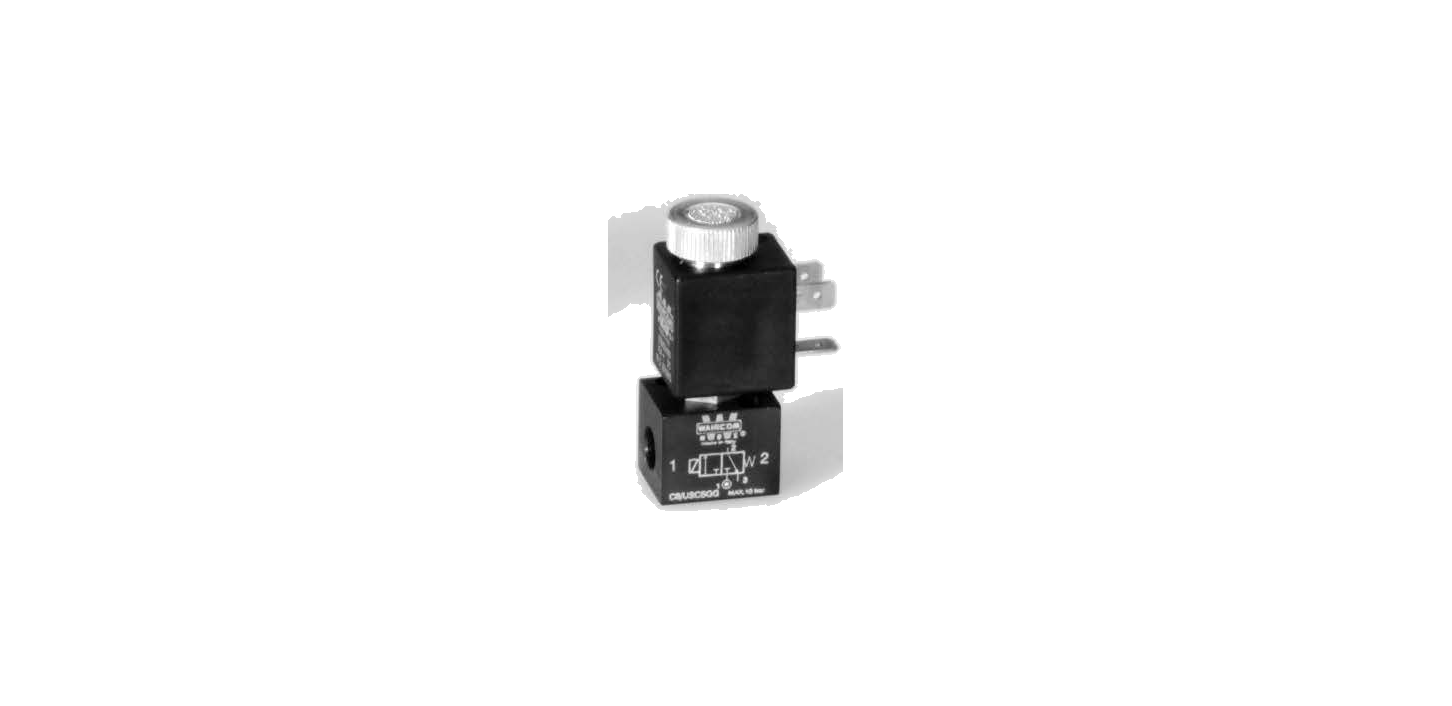

Waircom C8/USCSGG - Series C Pneumatic Valve, 3/2 N.C. (G 1/8)

Waircom C8/USCSGG - Series C Pneumatic Valve, 3/2 N.C. (G 1/8)

SKUC8/USCSGGBrandWaircom
AED 65.00
AED 65.00
Sale Sold out
Shipping calculated at checkout.

Available

The Waircom C8/USCSGG is a 3/2 N.C. mechanical valve from the Series C product line. Constructed with an aluminium housing, a brass barrel, and a brass sleeve, this body-ported 22 mm side valve delivers reliable flow control up to 36 Nl/min (ΔP=1 bar @6 bar). It operates within a pressure range of 0-10 bar and relies on premium Viton® seals to withstand working temperatures across 0 ÷ +50 °C (-20 °C with dry air). Standard connections feature a G 1/8 port thread and a Ø 9 mm sleeve diameter.

View full details
  • Brand: Waircom
  • Series: Series C
  • Function: 3/2 N.C.
  • Interface / Body Style: Body-ported 22 mm side
  • Port Thread: G 1/8
  • Flow Rate: 36 Nl/min (ΔP=1 bar @6 bar)
  • Body Material: Aluminium
  • Barrel Material: Brass
  • Sleeve Material: Brass
  • Seals: Viton®
  • Operating Pressure: 0-10 bar
  • Operating Temperature: 0 ÷ +50 °C (-20 °C with dry air)
  • Sleeve Diameter: Ø 9 mm
