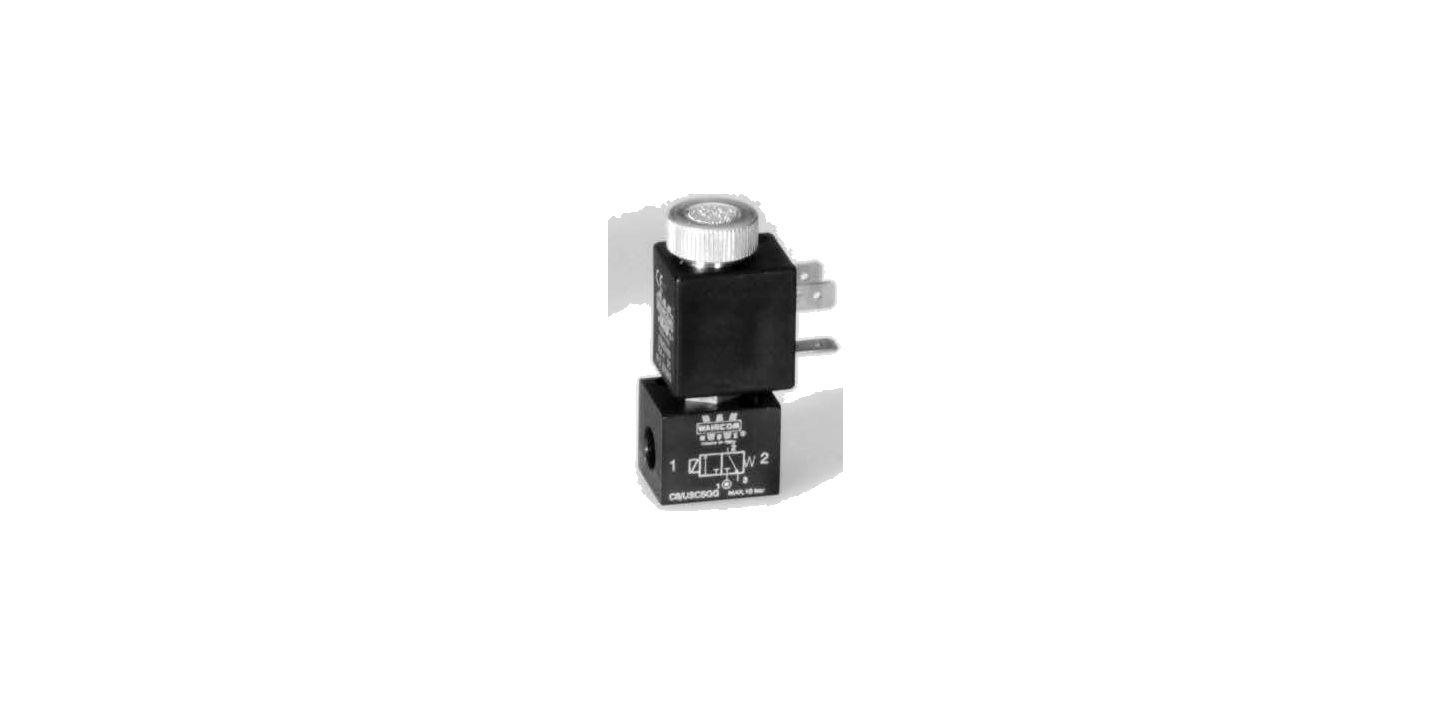

Waircom C8/USASGG - Series C Pneumatic Valve, 3/2 N.O. (G 1/8)

Waircom C8/USASGG - Series C Pneumatic Valve, 3/2 N.O. (G 1/8)

SKUC8/USASGGBrandWaircom
AED 116.00
AED 116.00
Sale Sold out
Shipping calculated at checkout.

The Waircom C8/USASGG is a 3/2 N.O. mechanical valve from the Series C product line. Constructed with an aluminium housing, a brass barrel, and a brass sleeve, this body-ported 22 mm side valve delivers reliable flow control through a Ø 9 mm sleeve diameter. It operates within a pressure range of 0-10 bar and relies on premium Viton® seals to withstand working temperatures across 0 ÷ +50 °C (-20 °C with dry air). Standard connections feature a G 1/8 port thread and a Ø 9 mm sleeve diameter.

View full details
ParameterValue
Brand
Waircom
Series
Series C
Function
3/2 N.O.
Interface / Body Style
Body-ported 22 mm side
Port Thread
G 1/8
Body Material
Aluminium
ParameterValue
Barrel Material
Brass
Sleeve Material
Brass
Seals
Viton®
Operating Pressure
0-10 bar
Operating Temperature
0 ÷ +50 °C (-20 °C with dry air)
Sleeve Diameter
Ø 9 mm
