• Waircom - C/USASVP
1 1

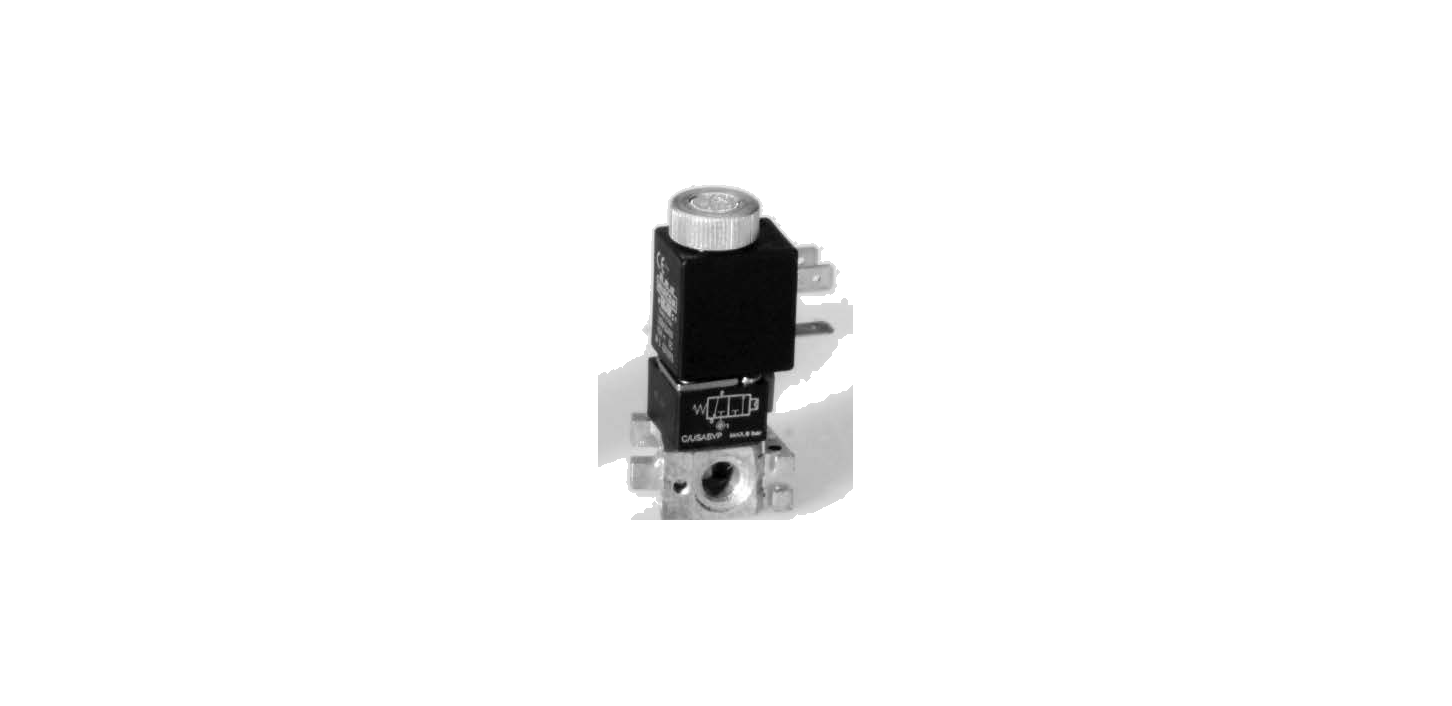

Waircom C/USASVP - Series C Pneumatic Valve, 3/2 N.O. (Universal interface)

Waircom C/USASVP - Series C Pneumatic Valve, 3/2 N.O. (Universal interface)

SKUC/USASVPBrandWaircom
AED 79.00
AED 79.00
Sale Sold out
Shipping calculated at checkout.

Available

The Waircom C/USASVP is a 3/2 N.O. mechanical valve from the Series C product line. Constructed with an acetal resin housing, a brass barrel, and a brass sleeve, this universal interface 22 mm side valve delivers reliable flow control up to 50 Nl/min (ΔP=1 bar @6 bar). It operates within a pressure range of 0-10 bar and relies on premium Viton® seals to withstand working temperatures across 0 ÷ +50 °C (-20 °C with dry air). Standard connections feature a Universal interface connection and a Ø 9 mm sleeve diameter.

View full details
  • Brand: Waircom
  • Series: Series C
  • Function: 3/2 N.O.
  • Interface / Body Style: Universal interface 22 mm side
  • Manual Override: Manual bistable
  • Flow Rate: 50 Nl/min (ΔP=1 bar @6 bar)
  • Body Material: Acetal resin
  • Barrel Material: Brass
  • Sleeve Material: Brass
  • Seals: Viton®
  • Operating Pressure: 0-10 bar
  • Operating Temperature: 0 ÷ +50 °C (-20 °C with dry air)
  • Sleeve Diameter: Ø 9 mm
