• Abb - ACS355-01E-09A8-2
1 1

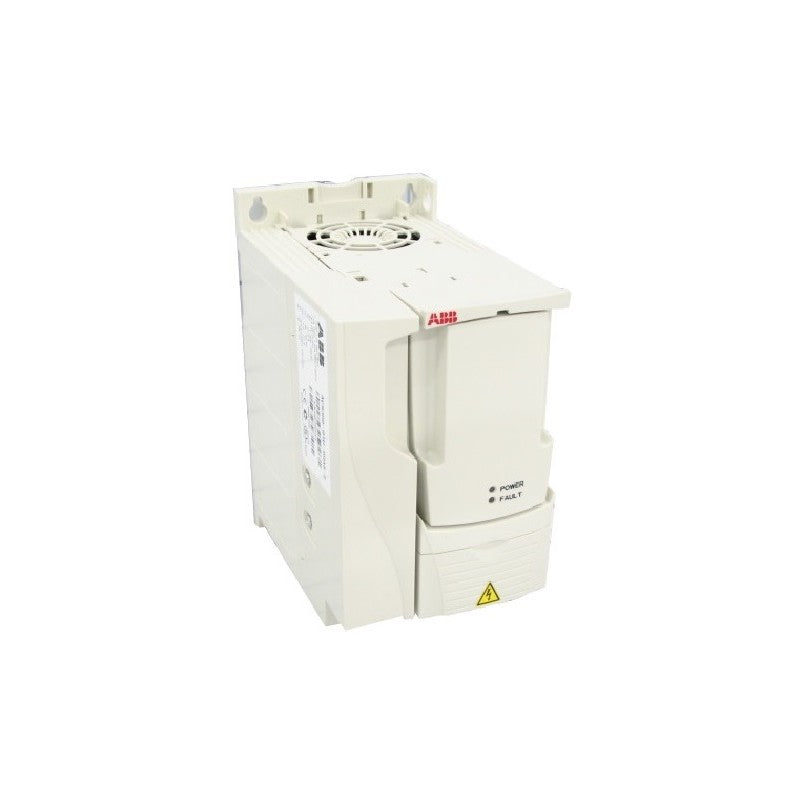

ACS355-01E-09A8-2 - Abb ACS355 Inverter Drive, 2.2 kW 1 Phase 230 V ac (9.8 A)

ACS355-01E-09A8-2 - Abb ACS355 Inverter Drive, 2.2 kW 1 Phase 230 V ac (9.8 A)

SKUACS355-01E-09A8-2BrandAbb
AED 1,877.00
AED 1,877.00
Sale Sold out
Shipping calculated at checkout.

The ACS355-01E-09A8-2 is a high-performance inverter drive manufactured by Abb, part of the ACS355 series. Rated at 2.20 kW with a 1-Phase 230Vac supply input and 9800 mA output current, this variable frequency drive delivers precise motor speed control for a wide range of industrial applications. Featuring IP20 environmental protection, an output frequency range of 0–600 Hz, AC-Motors, it provides seamless integration into your existing control architecture. With No Safe Torque Off functionality, this inverter drive is engineered for HVAC systems, pumps, conveyors, fans, and general-purpose motor control where energy efficiency and process optimisation are critical.

View full details
ParameterValue
Brand
Abb
Series
ACS355
Power Rating
2.20 kW
Supply Voltage
230Vac
Current Rating
9800 mA
Phase
1-Phase
For Use With
AC-Motors
IP Rating
IP20
STO
No
Output Frequency
0–600 Hz
Overall Depth
191 mm
ParameterValue
Overall Length
239 mm
Overall Width
105 mm
Drive Type
Vector-Control
Mounting Type
Panel-Mount
Standards Met
CE, C-Tick, cUL, EMC Directive 2004/108/EC, Environmental System ISO 14001, GOST R, Low Voltage Directive 2006/95/EC, Machinery Directive 2006/42/EC, Quality Assurance System ISO 9001, UL
Filter Included
Yes
Control Panel
No
Function
Motor-Control
Special Features
Flash-Drop Tool, Programmable Control-Connection, Safe Torque-Off-Function, Sequence-Programming, Serial-and-Ethernet Communication, Speed-Compensated Stop
Interface
RS232, RS485
