• Schmersal - A-K4P-M12P-S-G-10M-BK-2-X-T-4
1 1

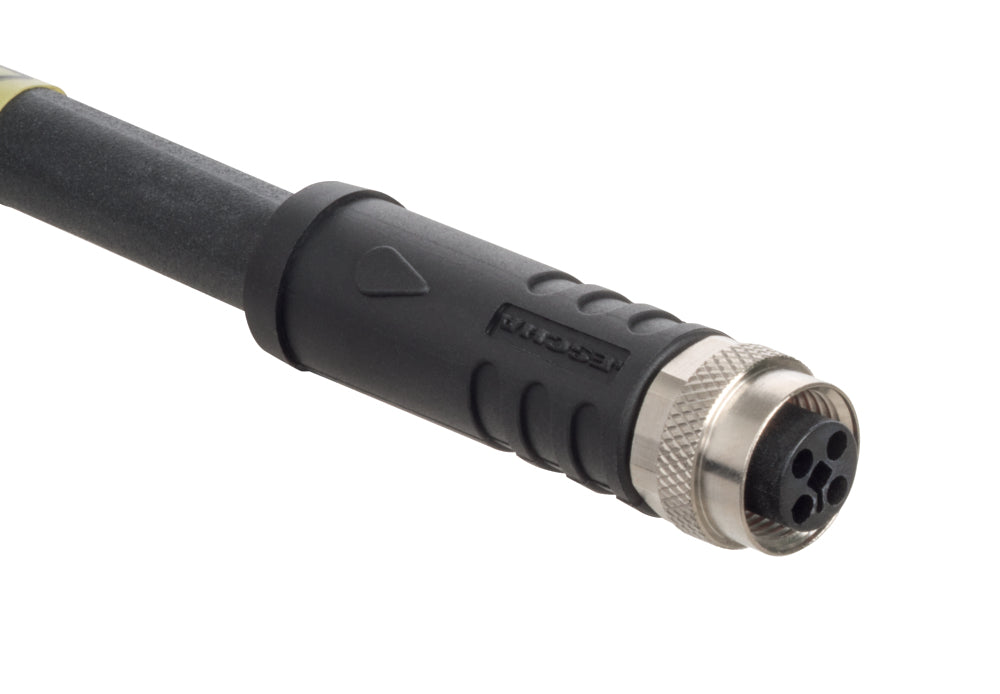

A-K4P-M12P-S-G-10M-BK-2-X-T-4 - Schmersal Sensor & Actuator Cable, 10 m

A-K4P-M12P-S-G-10M-BK-2-X-T-4 - Schmersal Sensor & Actuator Cable, 10 m

SKUA-K4P-M12P-S-G-10M-BK-2-X-T-4BrandSchmersal
AED 317.00
AED 317.00
Sale Sold out
Shipping calculated at checkout.

The A-K4P-M12P-S-G-10M-BK-2-X-T-4 is a high-quality sensor and actuator connection cable manufactured by Schmersal (Series A-K). Measuring 10 m in length, it is engineered for reliable signal transmission in harsh industrial environments. It carries a rugged IP65 protection rating and is capable of withstanding extreme temperatures ranging from -40°C to +90°C. The cable features specialized connectors (Female connector) for secure, vibration-resistant integration.

View full details
ParameterValue
Brand
Schmersal
Series
A-K
Number of Cores
4
Cross Sectional Area
1.5 mm²
Jacket Material
PUR
Jacket Colour
Black
Cable Length
10 m
Connector Gender A
Female
Number of Contacts A
4
Connector 1
Female connector
ParameterValue
Connector 1 Gender
Female
Connector 1 Orientation
Straight
Connector 1 Number of Contacts
4
Outside Diameter
9.6 mm
Minimum Operating Temperature
-40°C
Voltage
63 VDC
Maximum Operating Temperature
+90°C
Standards/Approvals
cULus
IP Rating
IP65/ IP67/ IP68
