Allen-Bradley 800T-H33 - Selector Switch, 30.5 mm 2-Position Cylinder Lock, Maintained, No Contacts

Name: Allen-Bradley 800T-H33 - Selector Switch, 30.5 mm 2-Position Cylinder Lock, Maintained, No Contacts
Brand: Allen-Bradley
SKU: 800T-H33
Price: 400.89 AED
Availability: InStock

SKU800T-H33BrandAllen-Bradley

AED 400.89

~~AED 445.43~~ AED 400.89

Sale Sold out

Shipping calculated at checkout.

Only 10 left

Quantity

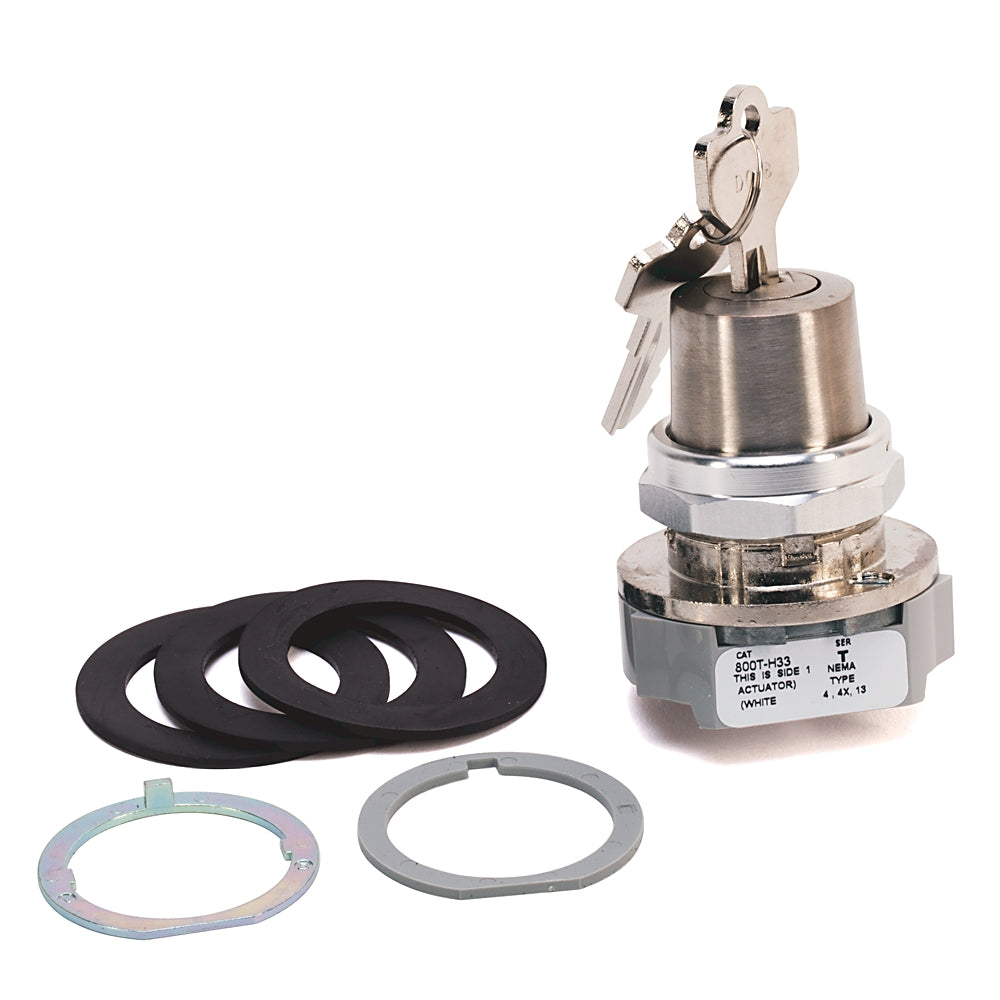

Allen-Bradley 800T-H33 Selector Switch — 2-Position Cylinder Lock, 30.5 mm. 30.5 mm 2-position cylinder lock selector switch operator, NEMA Type 4/13, maintained action, locks in both positions with a standard D018 key. Supplied as the operator only, without contact blocks, for use with 800T front-of-panel push button stations..

MPN / SKU: 800T-H33

800T-H33 Applications

This cylinder lock selector switch adds key-controlled security to machine control panels, restricting operation of selected functions to authorized personnel who hold the standard key. The maintained 2-position action holds each selected state, and the lock-both feature allows the key to be removed in either position. Rated for NEMA Type 4 and 13 environments, it withstands washdown and oily industrial conditions. Order the required contact blocks separately to complete the assembly for your switching needs.

800T-H33 Specifications

Brand	Allen-Bradley	Series	800T
Operator Type	2-Position Selector Switch	Actuator	Cylinder Lock
Mounting Size	30.5 mm	Enclosure Type	NEMA Type 4/13
Operation	Maintained	Lock Feature	Lock Both Positions
Key Type	Standard, D018 Key	Contacts	No Contacts (operator only)
Country of Origin	China	Lifecycle Status	Active
