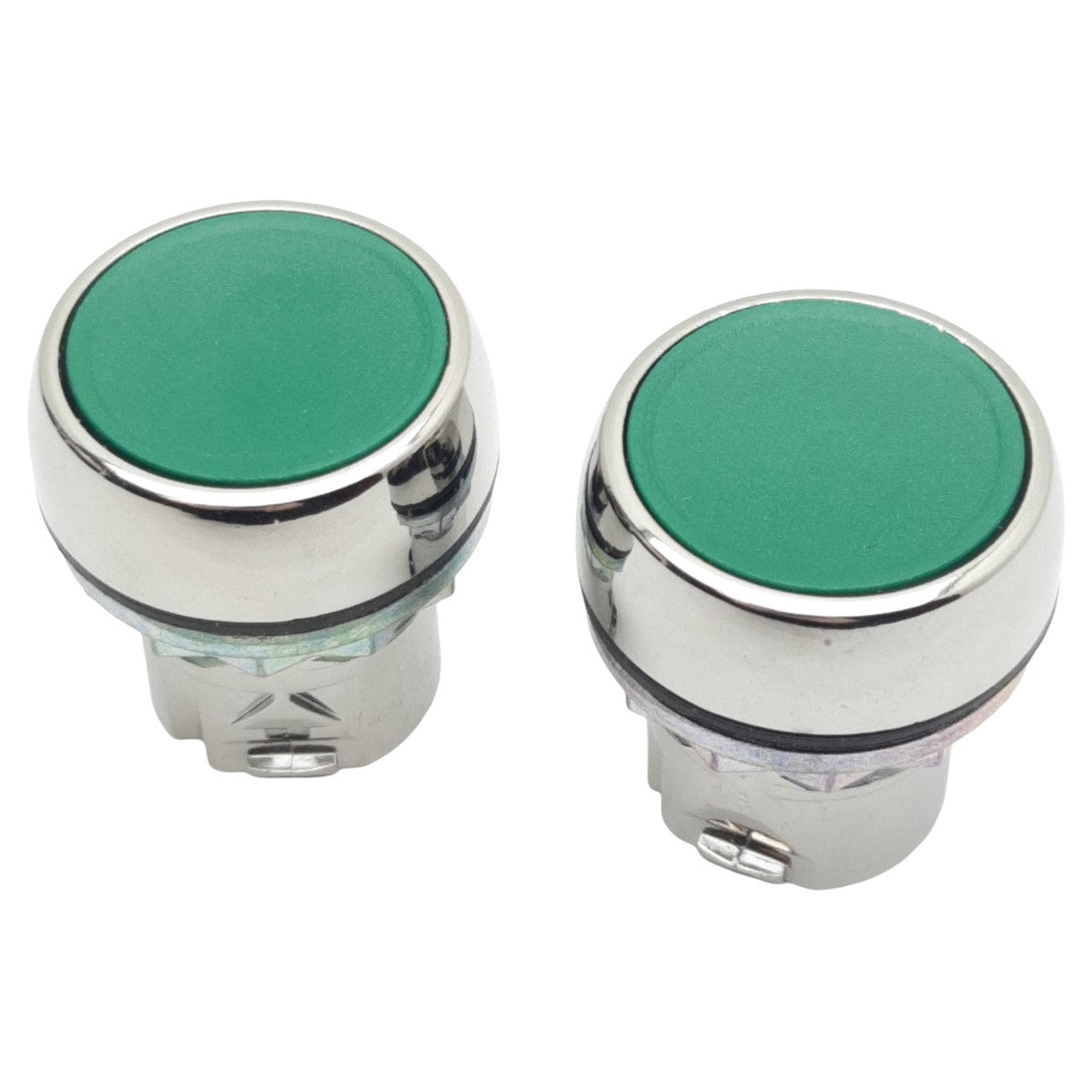

Allen-Bradley 800FM-F3 - Flush Push Button, Green Flush, Momentary

Allen-Bradley 800FM-F3 Flush Push Button. Allen-Bradley 800FM 22mm flush momentary push button, green, non-illuminated, with a metal housing and plastic operator cap. Round flush operator with no legend. 22.5 mm mounting hole, rated IP66 / Type 4/13, mechanical life 10 million cycles minimum..

MPN / SKU: 800FM-F3

800FM-F3 Applications

This green flush momentary push button provides operator control for starting, jogging, and signaling in industrial machines and control stations. The flush operator sits level with the front ring to help prevent accidental actuation, while the rugged metal housing withstands demanding plant environments. Rated IP66 and Type 4/13, it resists dust and washdown, and offers a mechanical life of at least ten million operations. It mounts in a standard 22.5 mm panel cutout and pairs with 800F latch-mount contact blocks to build the needed circuit configuration.
