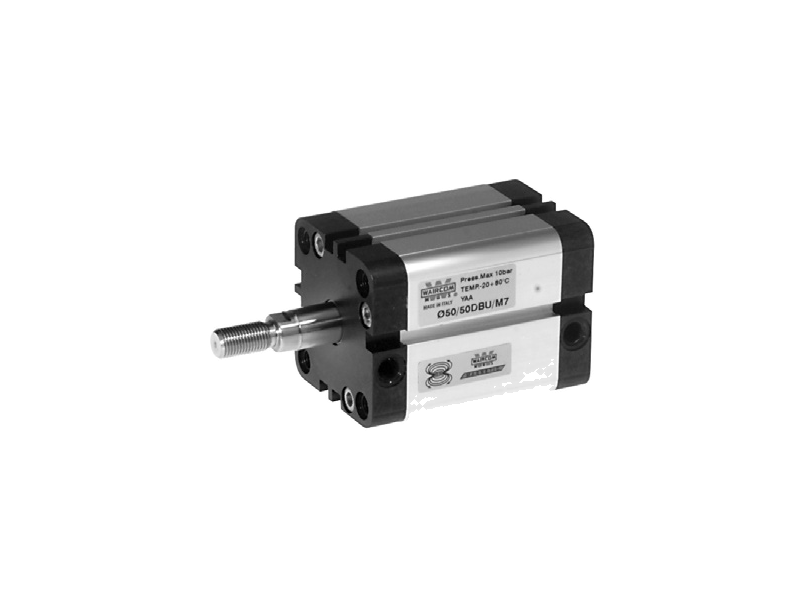

Waircom 80/300 DBU/M7 - Series BU Double Acting Cylinder (80mm Bore x 300mm Stroke)

Waircom 80/300 DBU/M7 - Series BU Double Acting Cylinder (80mm Bore x 300mm Stroke)

SKU80/300 DBU/M7BrandWaircom
AED 769.00
AED 769.00
Sale Sold out
Shipping calculated at checkout.

The Waircom 80/300 DBU/M7 is a Series BU double acting pneumatic cylinder designed for standard industrial automation. It features a 80mm bore, a 300mm stroke, and a built-in magnetic piston. Constructed with a anodized aluminium alloy (20 µm) barrel and an C45 chromium-plated steel piston rod, it offers strong corrosion resistance. This unit includes a M16x1,5 male threaded rod end and an G1/8 port, fully complying with AFNOR NF E49-004-1 / NF E49-004-2 standards.

View full details
ParameterValue
Brand
Waircom
Series
Series BU
Cylinder Type
Double Acting
Bore Size
80 mm
Stroke
300 mm
Piston Type
Magnetic
ParameterValue
Rod End
Male threaded
Barrel Material
Anodized aluminium alloy (20 µm)
Piston Rod Material
C45 chromium-plated steel
Piston Rod Thread
M16x1,5
Port Size
G1/8
Standards Met
AFNOR NF E49-004-1 / NF E49-004-2
