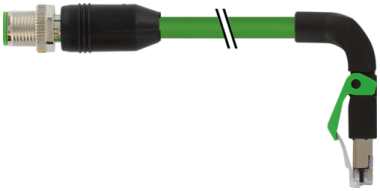

7000-44737-7960100 - Series M12 Ethernet Cable, 1m (Copper Braid, Tinned Shield)

7000-44737-7960100 - Series M12 Ethernet Cable, 1m (Copper Braid, Tinned Shield)

SKU7000-44737-7960100BrandMurrelektronik
AED 128.00
AED 128.00
Sale Sold out
Shipping calculated at checkout.

The 7000-44737-7960100 is a high-performance ethernet cable designed for secure and rapid data transmission in industrial and commercial networks. Part of the dependable Series M12, this cable measures 1m in length, making it ideal for compact panel wiring and short-run connections. Equipped with a robust copper braid, tinned shield, it effectively minimizes electromagnetic interference (EMI), ensuring your automated systems maintain consistent and error-free communication.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Murrelektronik
  • Series: M12
  • Cable Length: 1 m
  • LAN Category: CAT5
  • Terminated/Unterminated: Terminated
  • Shield Type: Copper Braid, Tinned
  • Connector 1: M12
  • Connector 1 Orientation: Straight
  • Connector 1 Gender: male
  • Connector 1 Number of Contacts: 4.0
  • Connector 2 Number of Contacts: 4.0
  • Connector 2 Gender: male
  • Connector 2: RJ45
  • Connector 2 Orientation: Angled
  • Shielded/Unshielded: Shielded
  • Coding: D
  • Outer Sheath Material: PUR
  • Sheath Colour: Green
  • Wiring Configuration: 4 wires around Core filler twisted
  • IP Rating: IP65, IP66K, IP67
  • Core Strands: 7.0
  • Fire Behaviour: IEC 6332-2-2 | UL 1581 § 19 | UL 1581 § 11 FT2
  • Standards Met: DIN EN 61076-2-101 (M12), according to IEC 60603-7 (RJ45)
  • Number of Strands: 4.0
  • Outer Diameter: 6.7 mm
  • American Wire Gauge: 22 AWG
  • Cable Shape: Round
  • Conductor Strand Type: Stranded copper wire, bare
  • Capacitance: 5 pF/km
  • Voltage Rating: 60 V
  • Current Rating: 1.5 A
  • Conductor Material: Stranded copper wire, bare
  • Conductor Resistance: 55 Ω/km @ 2 °C
  • Connector Type: M12
  • Contact Material: Copper alloy
  • Insulation material: PE
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -4 °C
  • Number of Cores: 4.0
  • Screened/Unscreened: Screened
  • Product Type: Cable
  • Current: 1.5 A
