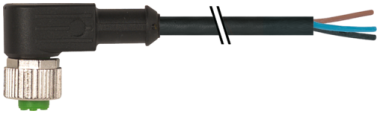

7000-12321-6330150 - Murrelektronik Sensor & Actuator Cable, 1.5 m

7000-12321-6330150 - Murrelektronik Sensor & Actuator Cable, 1.5 m

AED 43.00
AED 43.00
Sale Sold out
Shipping calculated at checkout.

The 7000-12321-6330150 is a high-quality sensor and actuator connection cable manufactured by Murrelektronik. Part of the Series M12. Measuring 1.5 m in length, it is engineered for reliable signal transmission. With IP65, IP66K, IP67 protection, it withstands harsh industrial environments. Connector specs: M12 / free cable end.
View full details

Specifications

  • Brand: Murrelektronik
  • Series: M12
  • Cross Sectional Area: 0.34 mm²
  • Jacket Material: PUR
  • Jacket Colour: black
  • Cable Length: 1.5 m
  • Connector Gender A: Female
  • Conductor Material: Stranded copper wire, bare
  • Number of Contacts A: 3
  • Connector Type A: M12
  • Connector 1 Gender: female
  • Connector 2 Gender: female
  • Connector Type B: Open End
  • Connector Gender B: Female
  • Outside Diameter: 4.1 mm
  • Conductor Type: Strand Class 6
  • Minimum Operating Temperature: -25 °C
  • Voltage: 250 V
  • Maximum Operating Temperature: 80 °C
  • IP Rating: IP65, IP66K, IP67
