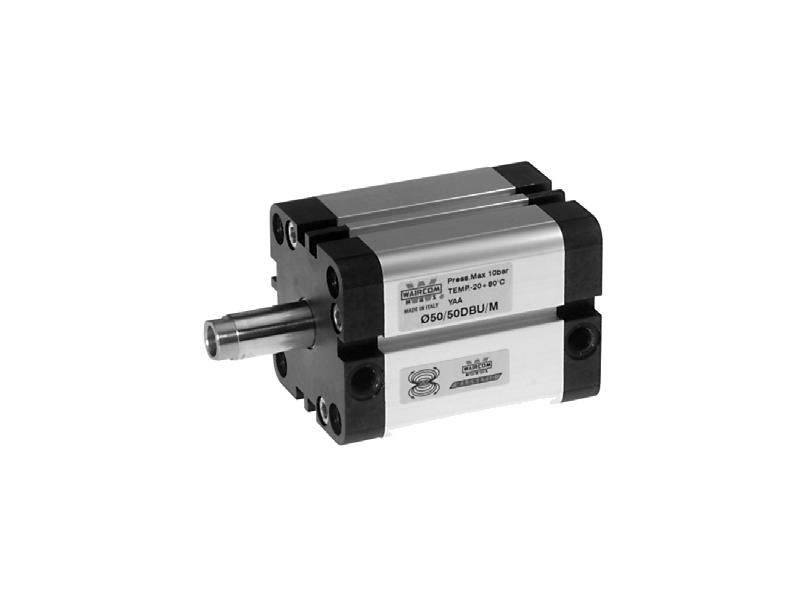

Waircom 63/80 DBU/M8 - Series BU Double Acting Cylinder (63mm Bore x 80mm Stroke)

Waircom 63/80 DBU/M8 - Series BU Double Acting Cylinder (63mm Bore x 80mm Stroke)

SKU63/80 DBU/M8BrandWaircom
AED 433.00
AED 433.00
Sale Sold out
Shipping calculated at checkout.

The Waircom 63/80 DBU/M8 is a Series BU double acting pneumatic cylinder designed for standard industrial automation. It features a 63mm bore, a 80mm stroke, and a built-in magnetic piston. Constructed with a anodized aluminium alloy (20 µm) barrel and an C45 chromium-plated steel piston rod, it offers strong corrosion resistance. This unit includes a M12x1,25 female threaded rod end and an G1/8 port, fully complying with AFNOR NF E49-004-1 / NF E49-004-2 standards.

View full details
ParameterValue
Brand
Waircom
Series
Series BU
Cylinder Type
Double Acting
Bore Size
63 mm
Stroke
80 mm
Piston Type
Magnetic
ParameterValue
Rod End
Female threaded
Barrel Material
Anodized aluminium alloy (20 µm)
Piston Rod Material
C45 chromium-plated steel
Piston Rod Thread
M12x1,25
Port Size
G1/8
Standards Met
AFNOR NF E49-004-1 / NF E49-004-2
