Allen-Bradley 509-BOD - NEMA Motor Starter, NEMA Size 1, 120V 60Hz Coil

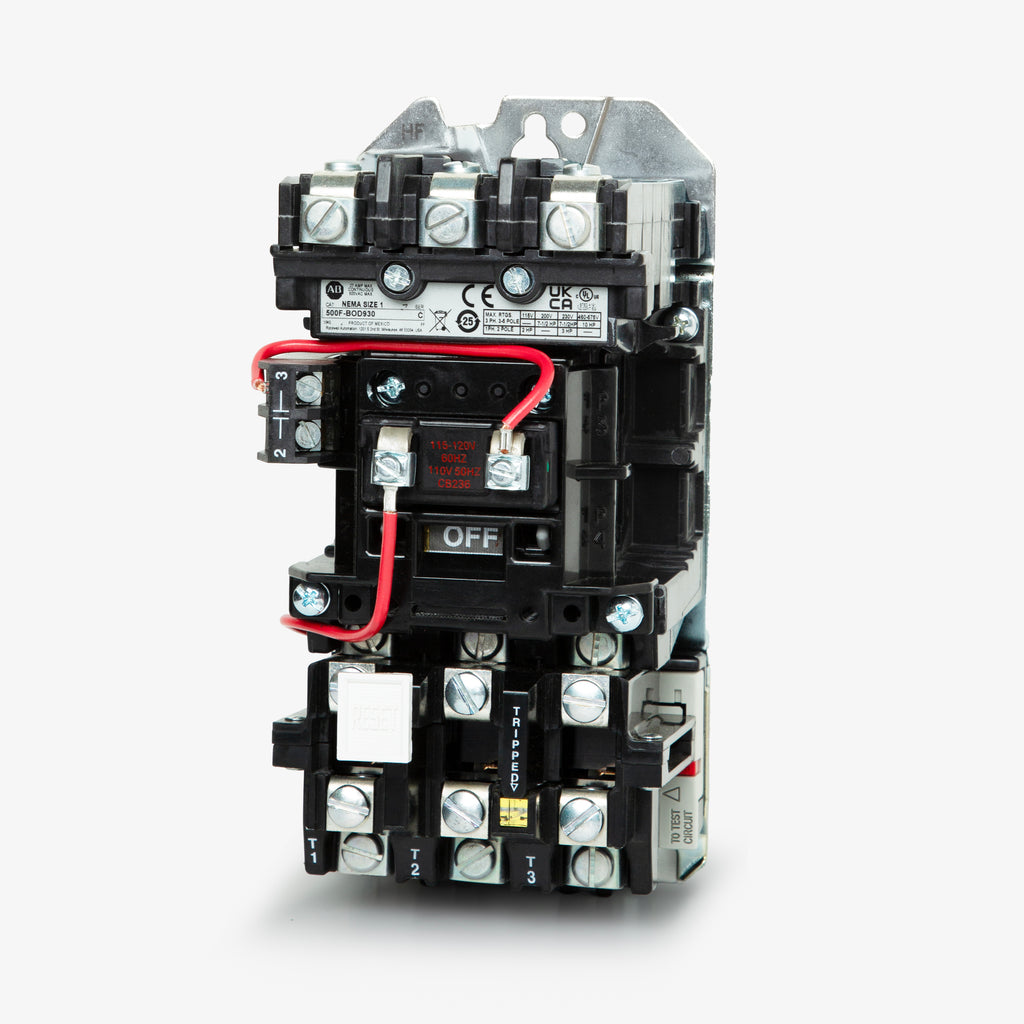

Allen-Bradley 509-BOD NEMA Motor Starter — Bulletin 509 NEMA Size 1 full-voltage non-reversing starter, 120V 60Hz coil. Allen-Bradley 509-BOD Bulletin 509 NEMA full-voltage non-reversing (direct-on-line) magnetic motor starter, NEMA Size 1, with a 120V 60Hz (110V 50Hz) coil. Rated for 27 A continuous and up to 7.5 HP at 230V three-phase, it combines a magnetic contactor with a temperature-compensated eutectic-alloy overload relay for motor running protection. Open-type construction for panel mounting..

MPN / SKU: 509-BOD

509-BOD Applications

This Bulletin 509 NEMA Size 1 starter provides across-the-line, full-voltage starting for three-phase motors up to 7.5 HP at 230V, combining a robust magnetic contactor with a temperature-compensated eutectic-alloy overload relay for dependable running overload protection. The 120V 60Hz control coil integrates readily with standard control-transformer and pilot-device schemes, while the open-type build mounts directly in enclosures and motor control centers. Rated at 27 A continuous with a 32 A service limit, it suits pumps, fans, conveyors and compressors where straightforward non-reversing control and proven NEMA-rated durability are needed. Field-replaceable heater elements let installers match overload protection precisely to motor full-load current.
