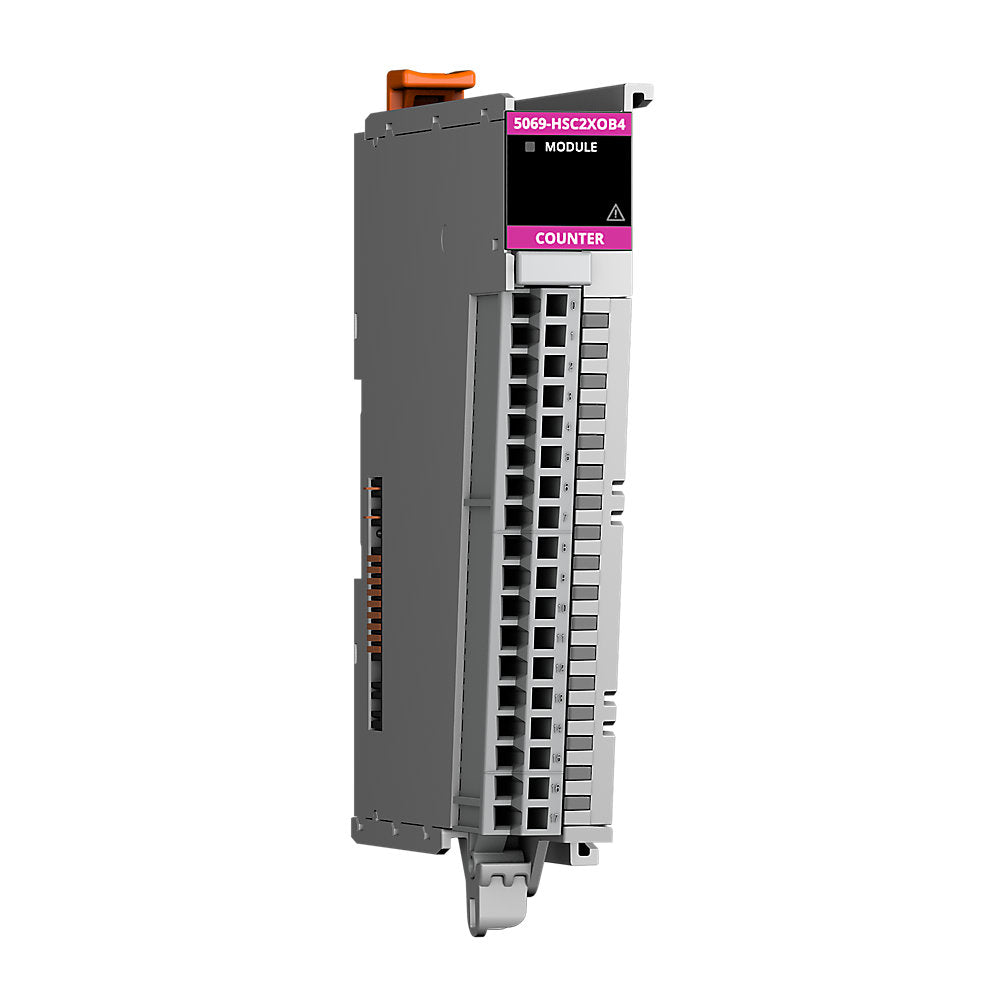

Allen-Bradley 5069-HSC2XOB4 - High Speed Counter I/O Module, 2-Ch High Speed Counter + 4 Out, 24V DC Sourcing Outputs

Allen-Bradley 5069-HSC2XOB4 High Speed Counter I/O Module — Compact 5000 2-channel high-speed counter with 4 sourcing 24V DC outputs. Compact 5000 (5069) I/O module combining two high-speed counter input channels with four sourcing 24V DC digital outputs. Counter inputs accept quadrature ABZ differential signals over a 3-32V DC range with 125 ns minimum pulse width for fast position and rate measurement. The four outputs (10-32V DC sourcing) can be tied to counter presets for on-board control. Housed in a 22 mm-wide module with 3 W maximum dissipation for 0-60 degrees C operation..

MPN / SKU: 5069-HSC2XOB4

5069-HSC2XOB4 Applications

This combination module reads two high-speed counter channels and drives four sourcing 24V DC outputs from a single Compact 5000 I/O slot, well suited to encoder feedback, flow metering, length measurement and web tension applications. The differential quadrature ABZ inputs handle fast pulse trains for accurate position and speed sensing, while the outputs can respond directly to counter presets or window comparisons for tight, low-latency control. It plugs into CompactLogix 5380 and Compact GuardLogix backplanes, letting one module serve both counting and actuation duties and saving panel space in packaging and converting machinery.

5069-HSC2XOB4 Specifications
