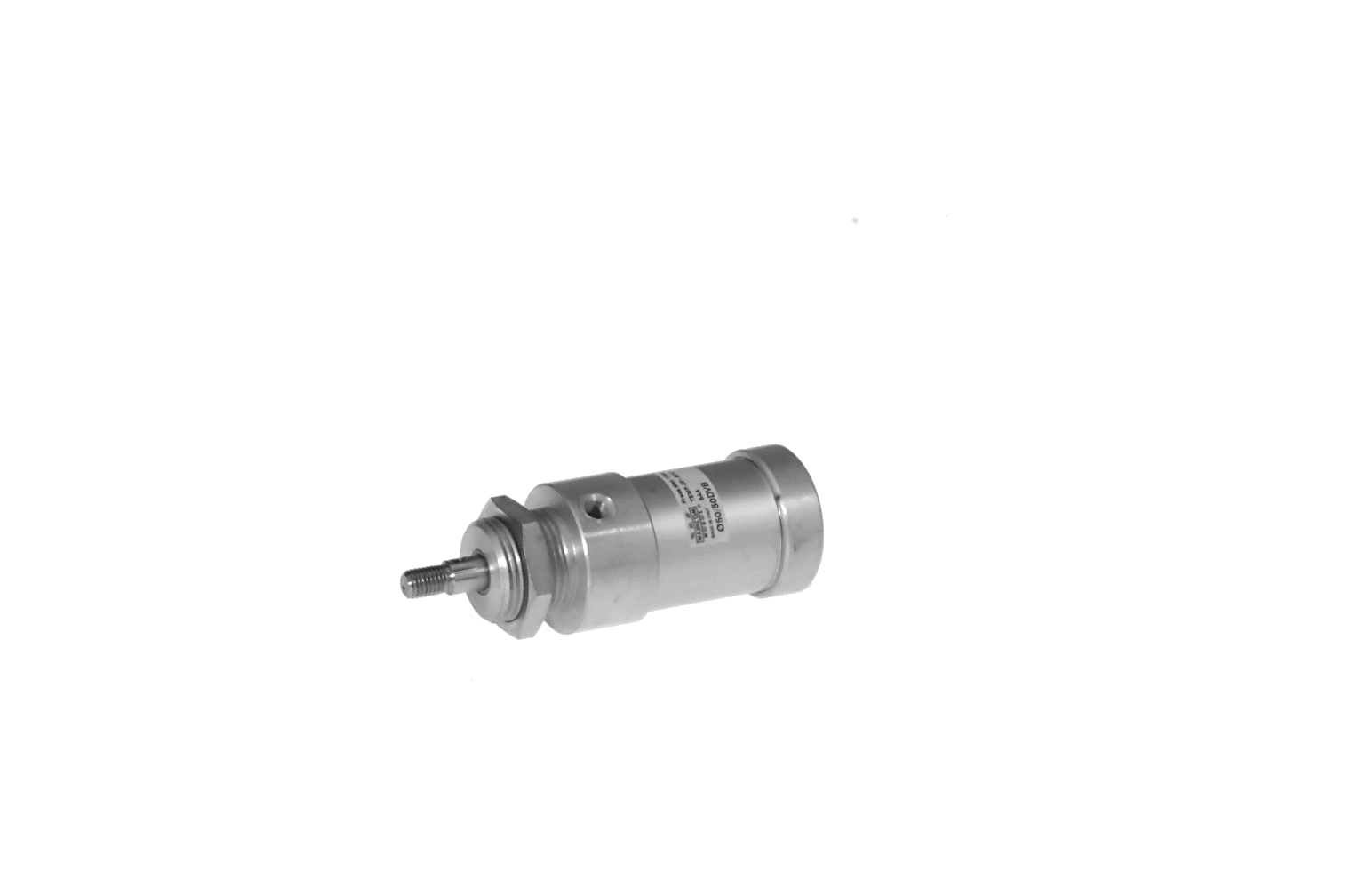

Waircom 50/60 DVB - Series HB Double Acting Screw-Mounted Cylinder (50 mm Bore x 60 mm Stroke)

The Waircom 50/60 DVB is an industrial double acting pneumatic cylinder from the Series HB range. Engineered with an integrated rear screw-mounted for dynamic linear paths, this actuator operates with a 50 mm bore and a 60 mm stroke. The structural assembly consists of an Anodized aluminium alloy (extruded tube) barrel paired with a tough C45 chromium-plated steel piston rod and durable NBR rubber seals. Standard fluid connections are handled via G 1/8 ports, and the piston rod is equipped with a standard M12 thread.
