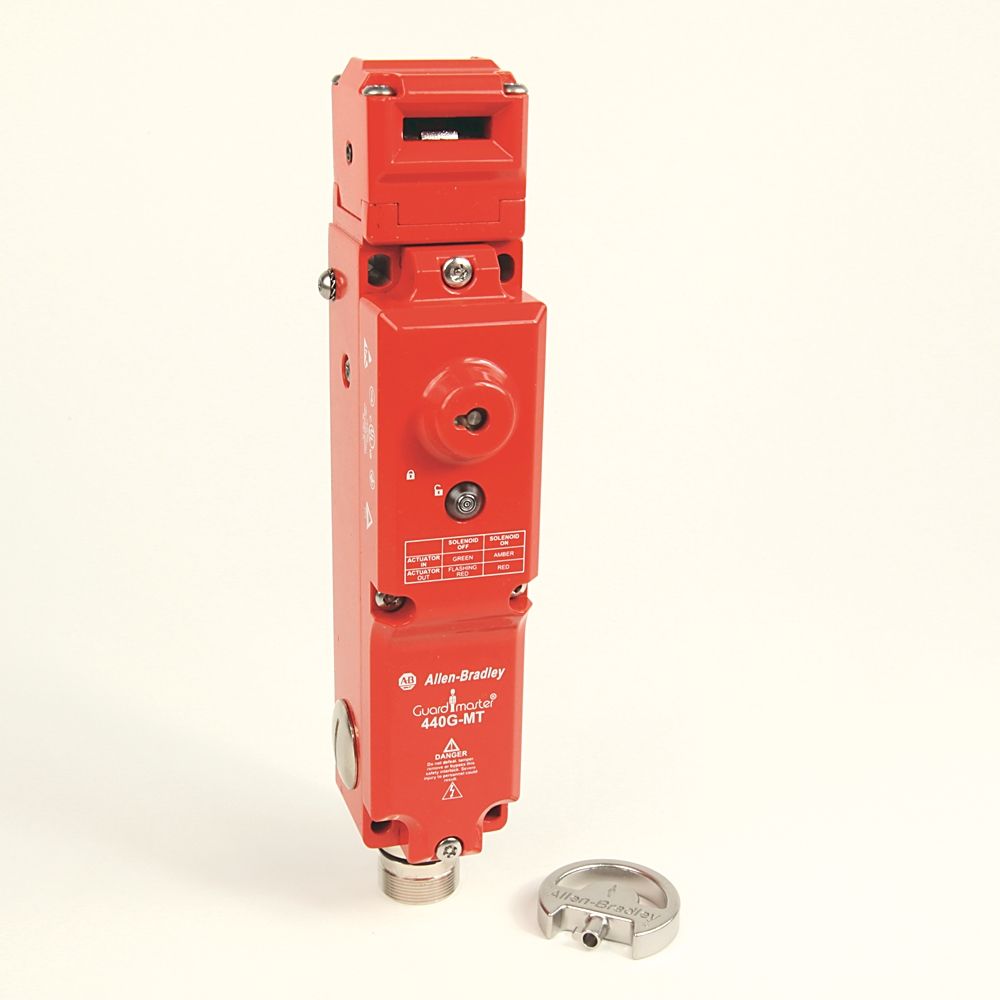

Allen-Bradley 440G-MT - Guard Locking Switch, Guard Locking, Power-to-Release, Holding Force 1500 N

Allen-Bradley 440G-MT Guard Locking Switch — Power-to-release guard locking switch, 1500 N holding force. Guardmaster 440G-MT guard locking safety switch: a tongue-operated, positive-mode interlock that keeps a machine guard locked closed until power is applied to release the solenoid. Holding force (Fzh) is 1500 N, in a heavy-duty die-cast housing. Suited to PLe/PLd (ISO 13849-1) and SIL 2/3 (IEC 62061) architectures. Note: 440G-MT is the switch series; confirm the exact full catalog number for a specific configuration..

MPN / SKU: 440G-MT

440G-MT Applications

A robust guard locking interlock that holds an access guard mechanically locked while a machine runs, releasing only when the control system energizes the internal solenoid. Power-to-release operation keeps the guard secured through a stop or power loss until the hazard has come to rest, protecting operators from residual motion on presses, robots, and rotating machinery. The 1500 N holding force and die-cast housing withstand demanding duty, and the design supports high safety performance levels for compliance with modern machine safety standards.

440G-MT Specifications
