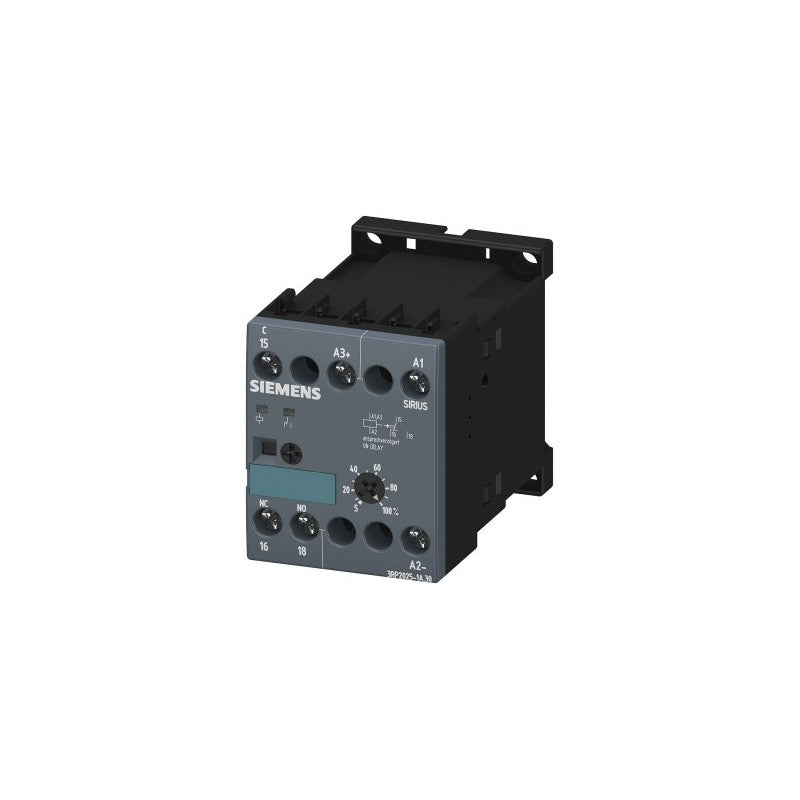

The 3RP2025-1AP30 is a versatile timer relay manufactured by Siemens, part of this product line, measuring 57mm in length. Featuring ON Delay timing mode with a configurable time range of 0.05 – 100 h, 0.05 – 100 min, 0.05 – 100s across Hours, Minutes, Seconds increments, this timer relay operates on a 110 – 240 V AC, 24 V AC/DC supply voltage. It provides SPDT output contacts rated for (dc) 1 A, (ac) 3 A at 250 V AC/DC, with Screw termination and DIN Rail installation. With single timer, a External power supply configuration, it delivers precise, repeatable time control for industrial automation sequences, motor starting, lighting control, HVAC scheduling, and process timing applications.
