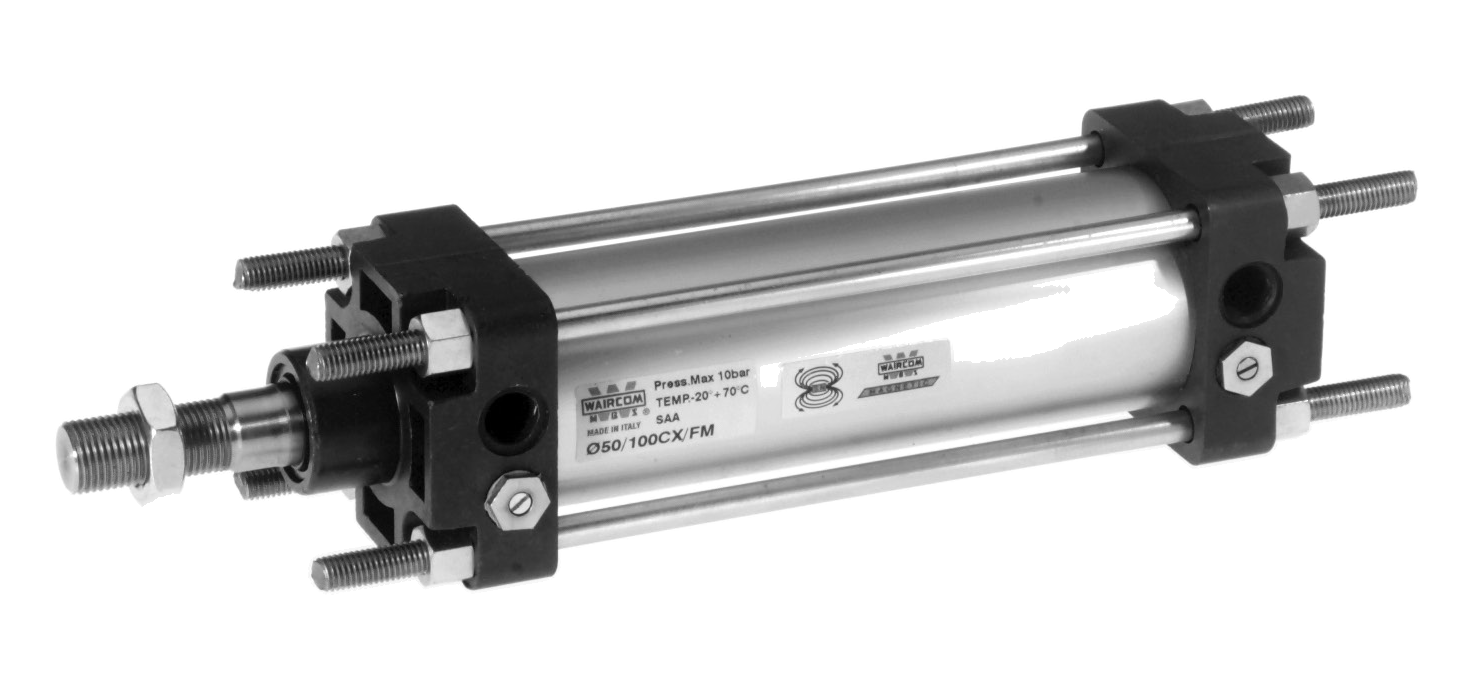

Waircom 32/75 CXL - Series CXL Double Acting, Cushioned Cylinder (32mm Bore x 75mm Stroke)

The Waircom 32/75 CXL is an industrial double acting, cushioned cylinder belonging to the Series CXL line. Built for demanding automation environments, this pneumatic actuator relies on a 32mm bore and a compact 75mm stroke to deliver reliable linear motion. It features built-in adjustable front + rear decelerators to manage end-of-stroke impact smoothly. Structural construction consists of an anodized aluminium alloy (extruded tube) barrel paired with a c45 chromium-plated steel piston rod. Standard mechanical connections include a G 1/8 port configuration and an M10 piston rod thread, fully meeting AFNOR NF E49-001 (ex CNOMO) standard specifications.
