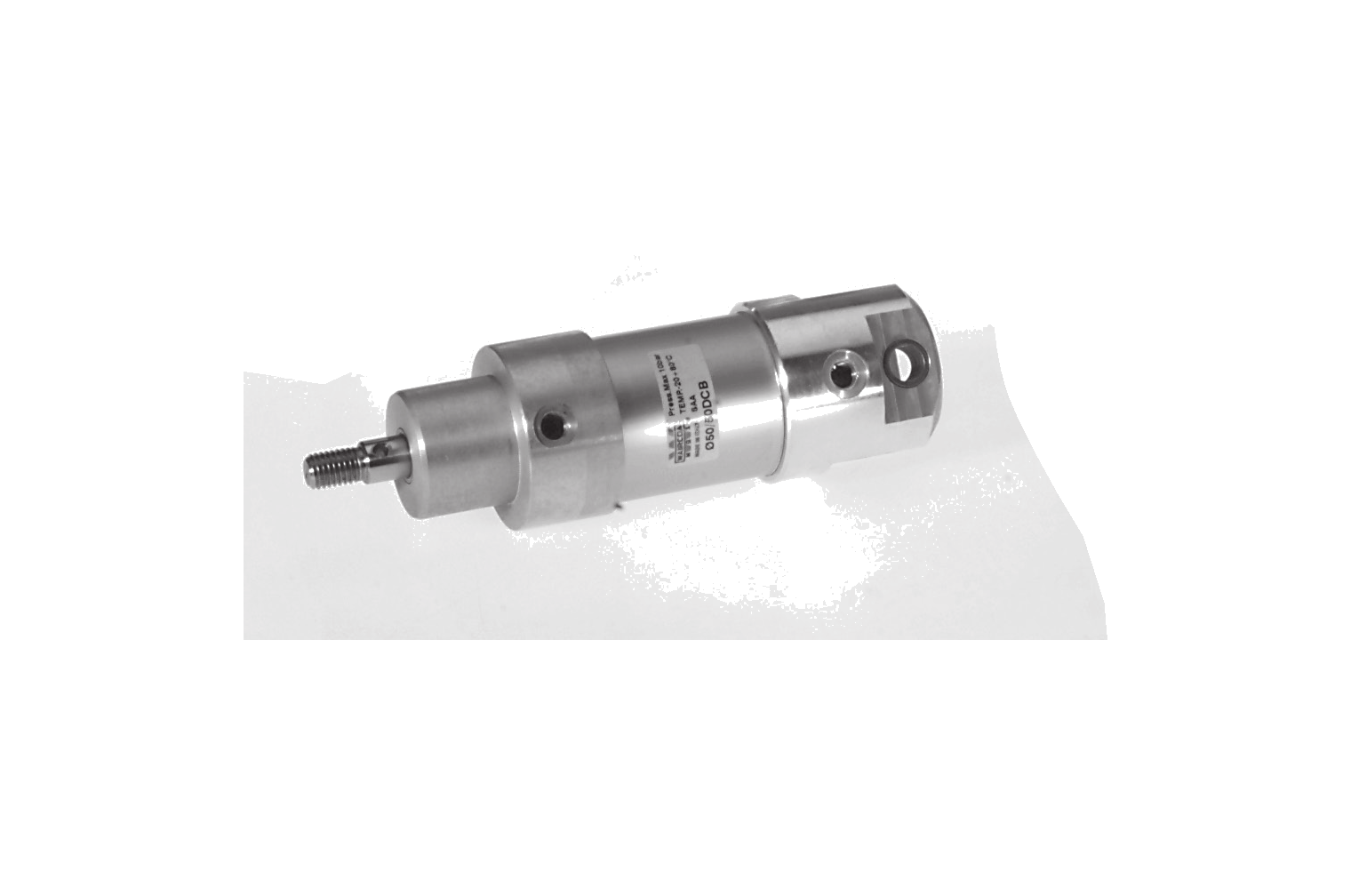

Waircom 27/900 DCB - Series HB Double Acting Hinge-Mounted Clevis Cylinder (27 mm Bore x 900 mm Stroke)

The Waircom 27/900 DCB is an industrial double acting pneumatic cylinder from the Series HB range. Engineered with an integrated rear hinge-mounted (clevis) for dynamic linear paths, this actuator operates with a 27 mm bore and a 900 mm stroke. The structural assembly consists of an Anodized aluminium alloy (extruded tube) barrel paired with a tough C45 chromium-plated steel piston rod and durable NBR rubber seals. Standard fluid connections are handled via G 1/8 ports, and the piston rod is equipped with a standard M8 thread.
