Allen-Bradley 25B-A4P8N114 - PowerFlex 525 AC Drive, PowerFlex 525 0.75kW (1HP) 240V AC drive, 4.8A output, single-phase, EMC filter, EtherNet/IP

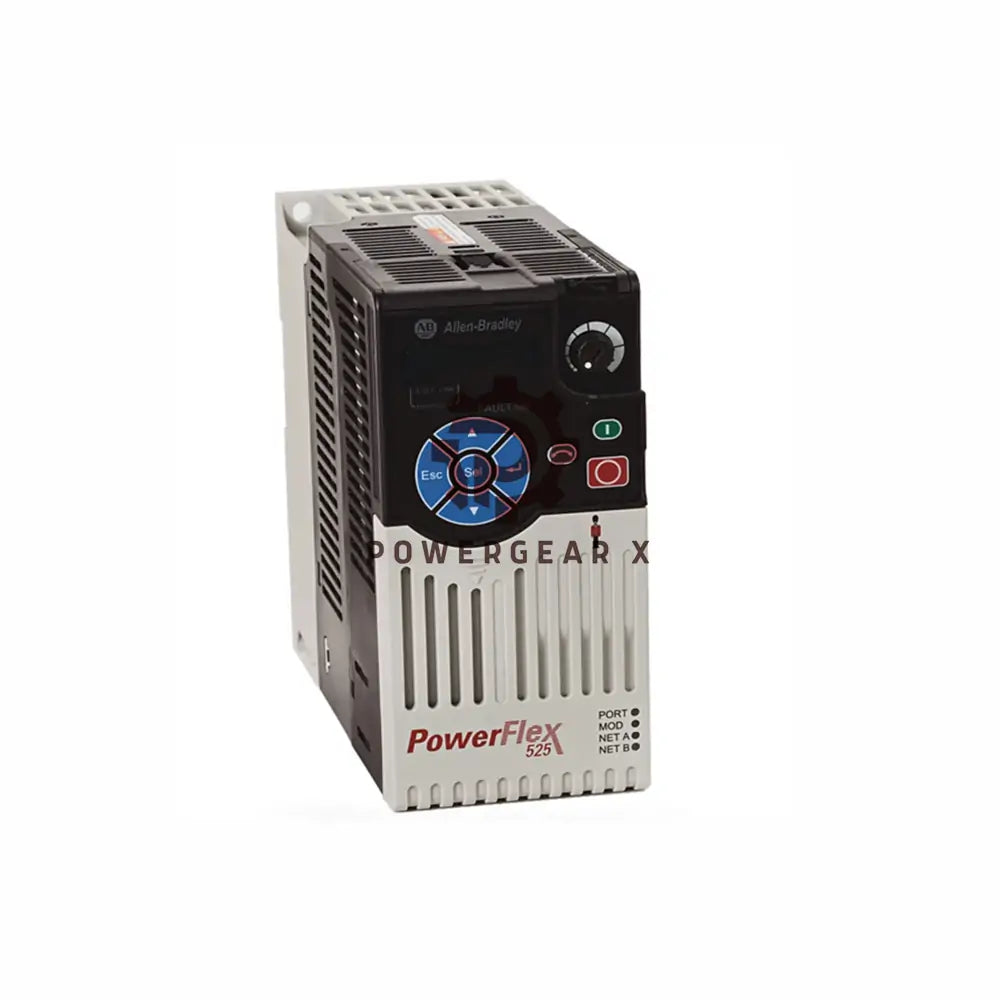

Allen-Bradley 25B-A4P8N114 PowerFlex 525 AC Drive — 0.75 kW (1 HP), 240V single-phase, with EMC filter. The Allen-Bradley 25B-A4P8N114 is a PowerFlex 525 AC variable frequency drive rated 0.75 kW (1 HP) for both Normal and Heavy Duty operation. It accepts 240V AC single-phase input at 50/60 Hz and delivers 4.8 A output current on a Frame A chassis with an IP20 / Open Type enclosure. An EMC filter is built in, and the drive features embedded EtherNet/IP, integral safety (Safe Torque Off), a brake IGBT, and an integral keypad with potentiometer and LED display. A modular design pairs a removable control module with the power module for fast installation and configuration..

MPN / SKU: 25B-A4P8N114

25B-A4P8N114 Applications

This PowerFlex 525 drive suits compact machine and conveyor applications needing precise variable-speed control of small single-phase-supplied AC motors up to 1 HP. Embedded EtherNet/IP simplifies integration with Logix controllers, while integrated Safe Torque Off supports machine safety designs. The built-in EMC filter helps meet conducted-emission requirements, and the modular control module allows pre-wiring and quick commissioning. Common uses include pumps, fans, mixers, and material-handling equipment where energy savings, flexible control modes, and easy setup through Connected Components Workbench are important.

25B-A4P8N114 Specifications
