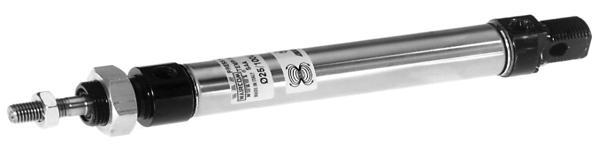

Waircom 25/125 UDE - Series U ISO 6432 Double Acting Cylinder (25 mm Bore x 125 mm Stroke)

Waircom 25/125 UDE - Series U ISO 6432 Double Acting Cylinder (25 mm Bore x 125 mm Stroke)

SKU25/125 UDEBrandWaircom
Regular price AED 215.00
Regular price Sale price AED 215.00
Sale Sold out
Shipping calculated at checkout.

In stock

The Waircom 25/125 UDE is a precision-engineered industrial double acting mini cylinder conforming to the global ISO 6432 standard. Designed for micro-pneumatic tasks, it operates with a slim 25 mm bore and a short 125 mm stroke. Its high-durability construction features an AISI 304 stainless steel barrel paired with an AISI 303 stainless steel piston rod and robust G1/8 ports. Equipped with a standard magnetic piston and an M10x1,25 thread.

View full details
  • Brand: Waircom
  • Series: Series U
  • Cylinder Type: Double Acting
  • Standard: ISO 6432
  • Bore Size: 25 mm
  • Stroke: 125 mm
  • Piston Type: Magnetic
  • Barrel Material: AISI 304 stainless steel
  • Piston Rod Material: AISI 303 stainless steel
  • Piston Rod Thread: M10x1,25
  • Port Size: G1/8
