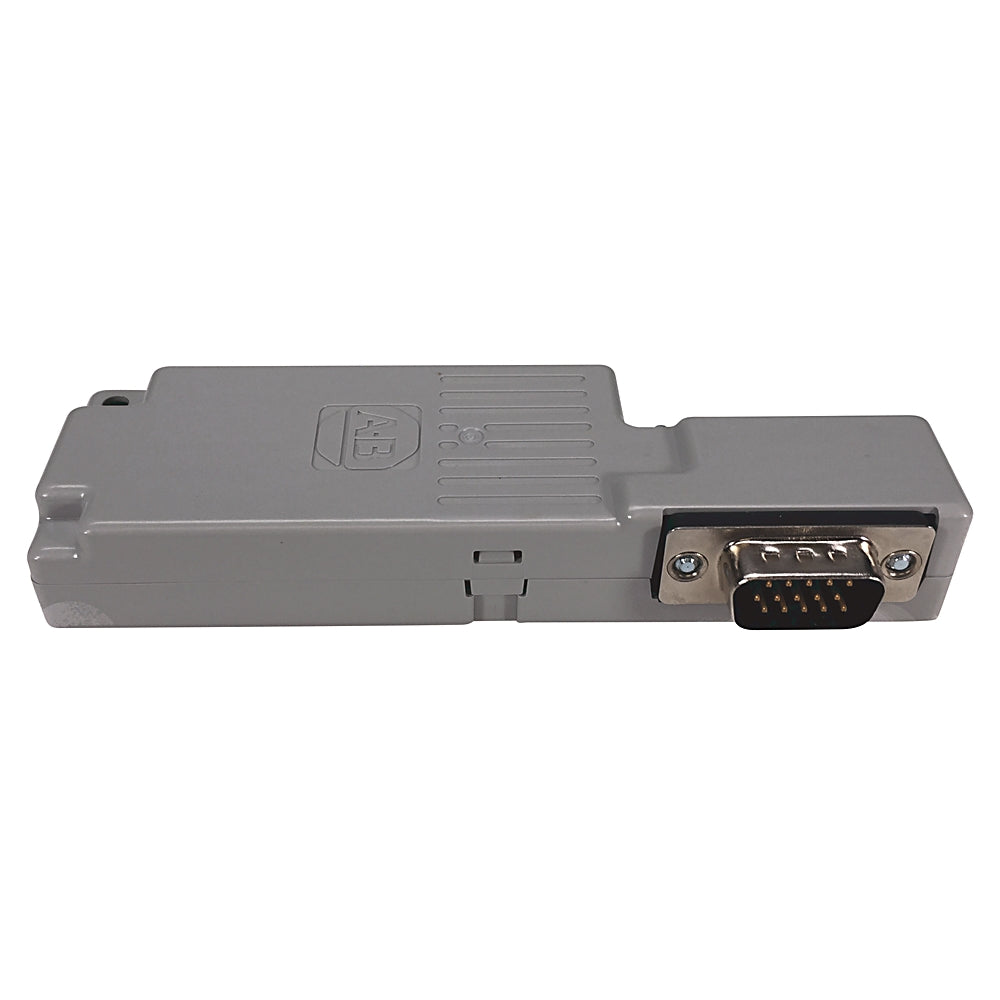

Allen-Bradley 2198-K57CK-D15M - Feedback Connector Kit, Kinetix 5700 universal feedback connector, 15-pin motor feedback interface

Allen-Bradley 2198-K57CK-D15M - Feedback Connector Kit, Kinetix 5700 universal feedback connector, 15-pin motor feedback interface

SKU2198-K57CK-D15MBrandAllen-Bradley
AED 455.39
AED 505.99 AED 455.39
Sale Sold out
Shipping calculated at checkout.

Only 1 left

Allen-Bradley 2198-K57CK-D15M Feedback Connector Kit — universal feedback connector kit. The Allen-Bradley 2198-K57CK-D15M is a Kinetix universal feedback connector kit for the Kinetix 5700 servo drive system. It provides the 15-pin (D-shell) motor feedback connector set used to terminate universal feedback wiring at the drive. The kit is supplied as a drive-side accessory. It carries an active lifecycle status..

MPN / SKU: 2198-K57CK-D15M

2198-K57CK-D15M Applications

The 2198-K57CK-D15M is used to build the motor feedback connection for Kinetix 5700 dual-axis and single-axis inverters using universal feedback. It supplies the field-wireable 15-pin connector so integrators can terminate feedback cabling to the drive. This kit is typically ordered when assembling custom-length feedback cables or replacing a damaged connector. Refer to Rockwell technical data KNX-TD003 for pinout and assembly instructions.

2198-K57CK-D15M Specifications

Brand Allen-Bradley Part Number 2198-K57CK-D15M
Product Type Feedback Connector Kit Series 2198 Kinetix 5700
Function Universal feedback connector set (15-pin) Country of Origin China
Lifecycle Status Active

2198-K57CK-D15M Datasheet & Manual

Download Datasheet & ManualAllen-Bradley 2198-K57CK-D15M · PDF · Official Allen-Bradley document
