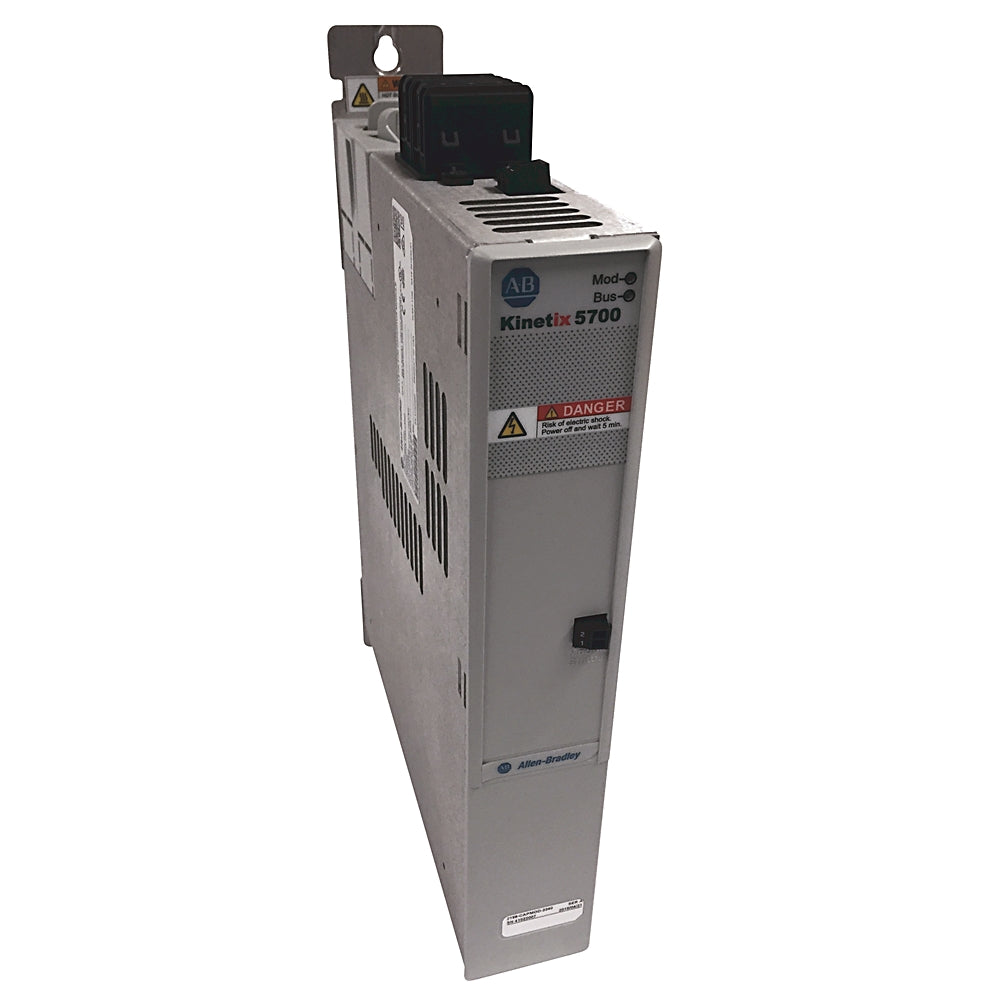

Allen-Bradley 2198-CAPMOD-2240 - Servo Drive Capacitor Module, Kinetix 5700 capacitor module, DC-bus energy storage

Allen-Bradley 2198-CAPMOD-2240 - Servo Drive Capacitor Module, Kinetix 5700 capacitor module, DC-bus energy storage

SKU2198-CAPMOD-2240BrandAllen-Bradley
AED 7,202.32
AED 8,002.58 AED 7,202.32
Sale Sold out
Shipping calculated at checkout.

Only 7 left

Allen-Bradley 2198-CAPMOD-2240 Servo Drive Capacitor Module — DC-bus energy storage module for Kinetix 5700 systems. The Allen-Bradley 2198-CAPMOD-2240 is a Kinetix 5700 capacitor module that adds DC-bus energy storage to multi-axis servo systems. It connects to the shared DC bus to buffer energy during acceleration and deceleration and to help support peak power demands. The module mounts alongside other Kinetix 5700 drive system components. Detailed capacitance and voltage ratings are provided in Rockwell technical data KNX-TD003..

MPN / SKU: 2198-CAPMOD-2240

2198-CAPMOD-2240 Applications

This capacitor module is used with Kinetix 5700 servo drive systems to increase available DC-bus energy storage. Adding bus capacitance helps applications with frequent acceleration and deceleration cycles or high peak power demands by buffering regenerated and stored energy. It installs as part of a shared-bus Kinetix 5700 configuration alongside power supplies and inverters. Consult Rockwell publication KNX-TD003 for capacitance, voltage, and mounting details when sizing a system.

2198-CAPMOD-2240 Specifications

Brand Allen-Bradley Part Number 2198-CAPMOD-2240
Product Type Capacitor Module Series 2198 Kinetix 5700

2198-CAPMOD-2240 Datasheet & Manual

Download Datasheet & ManualAllen-Bradley 2198-CAPMOD-2240 · PDF · Official Allen-Bradley document
