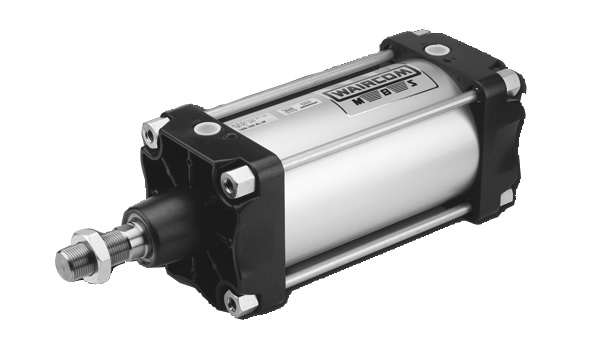

Waircom 200/550 XL/M - Series XL Large Bore ISO 15552 Magnetic Cylinder

The Waircom 200/550 XL/M is a large-bore, heavy industrial double acting cylinder designed for high-force linear applications under the ISO 15552 directive. It outputs massive mechanical force via a 200 mm bore and executes a precise 550 mm stroke. The premium composition relies on an Anodized aluminium alloy (20 µm) barrel, a heavy-duty C45 chromium-plated steel piston rod with M36x2 thread pitching, and massive G3/4 fluid connection ports. It comes natively equipped with a magnetic piston setup and adjustable (included as standard) cushioning to mitigate high-inertia impacts.
