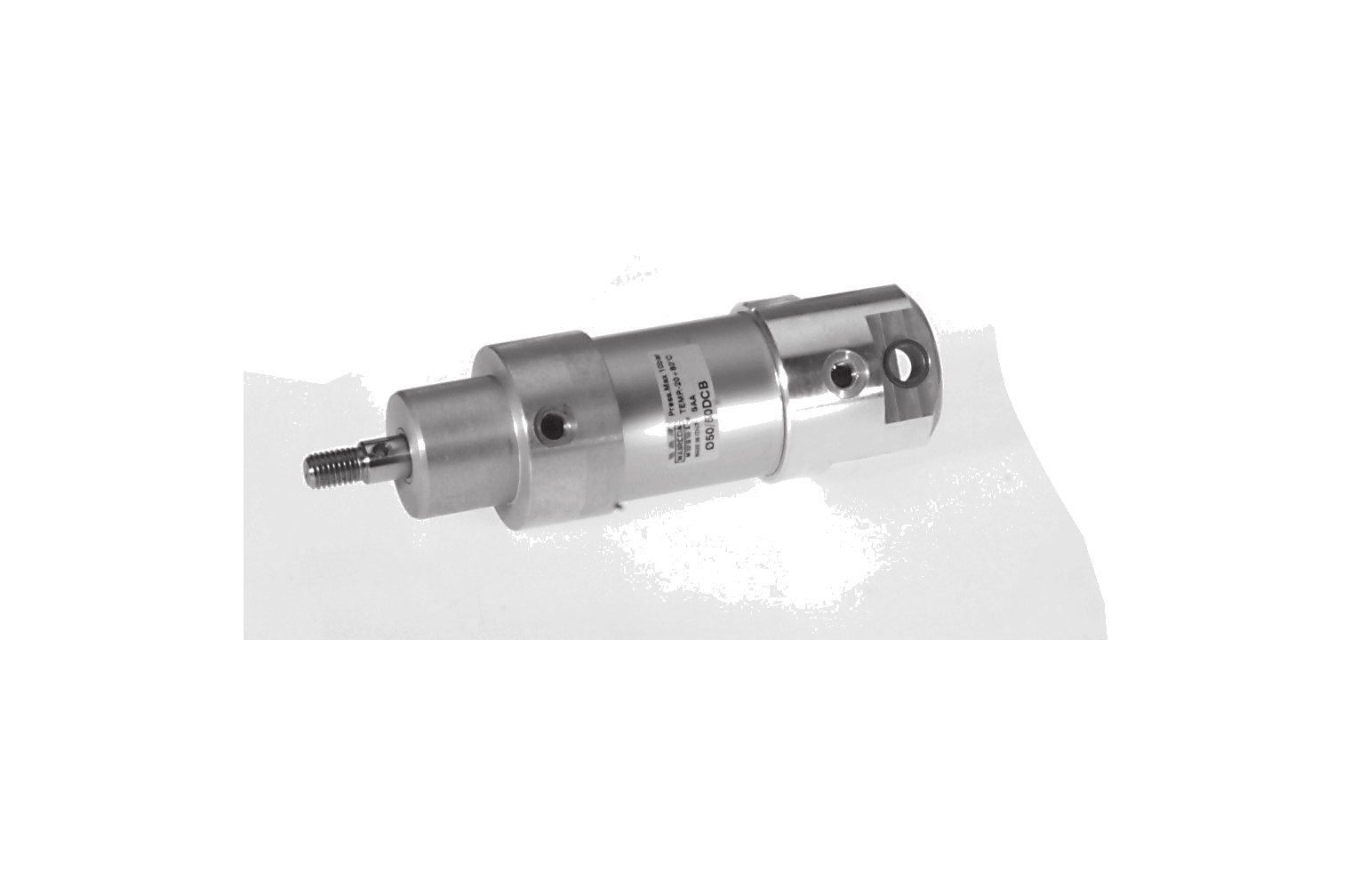

Waircom 20/20 DCB - Series HB Double Acting Hinge-Mounted Clevis Cylinder (20 mm Bore x 20 mm Stroke)

The Waircom 20/20 DCB is an industrial double acting pneumatic cylinder from the Series HB range. Engineered with an integrated rear hinge-mounted (clevis) for dynamic linear paths, this actuator operates with a 20 mm bore and a 20 mm stroke. The structural assembly consists of an Anodized aluminium alloy (extruded tube) barrel paired with a tough C45 chromium-plated steel piston rod and durable NBR rubber seals. Standard fluid connections are handled via G 1/8 ports, and the piston rod is equipped with a standard M6 thread.
