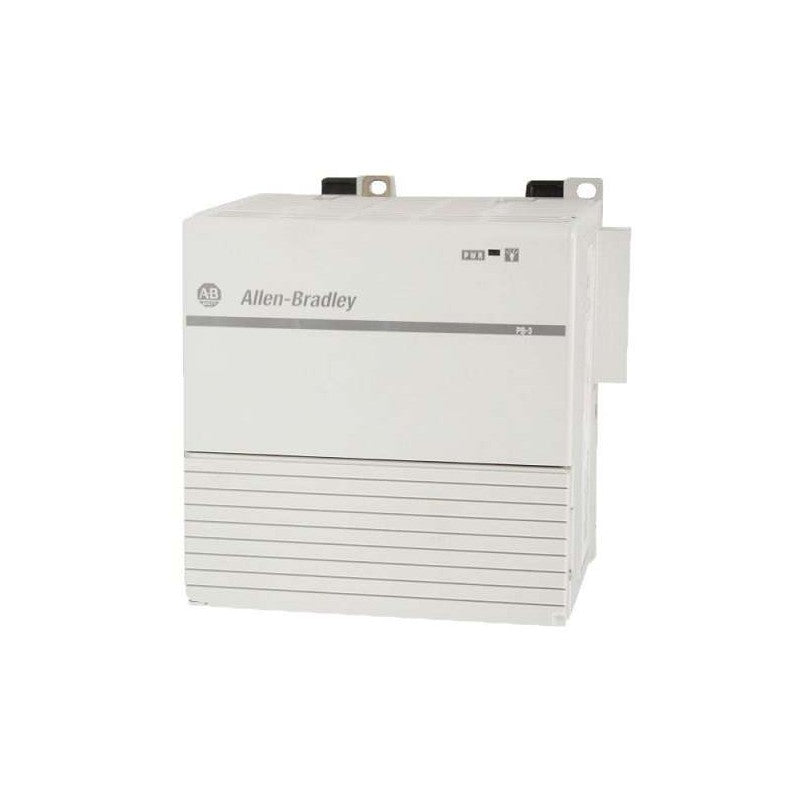

Allen-Bradley 1768-PB3 - DC Power Supply, 24V DC Input, 3.5 A Backplane Output

Allen-Bradley 1768-PB3 - DC Power Supply, 24V DC Input, 3.5 A Backplane Output

SKU1768-PB3BrandAllen-Bradley
AED 1,476.35
AED 1,640.39 AED 1,476.35
Sale Sold out
Shipping calculated at checkout.

Only 6 left

Allen-Bradley 1768-PB3 DC Power Supply — 24V DC input supply delivering 3.5 A to the 1768 backplane, plus a 0.25 A user 24V DC terminal. CompactLogix 1768 DC input power supply. Input voltage range 16.8 to 31.2V DC (24V DC nominal), maximum input power 112 W. Delivers 24V DC to the backplane at up to 3.5 A and provides a user 24V DC terminal (18 to 27.6V) rated up to 0.25 A. Maximum inrush current 50 A, power dissipation 22 W, non-replaceable soldered fuse. Height 131.5 mm (5.18 in). One-year standard warranty..

MPN / SKU: 1768-PB3

1768-PB3 Applications

This DC input power supply energises a 1768 CompactLogix backplane from a 24V DC source, accepting 16.8 to 31.2V DC and supplying up to 3.5 A to the controller and adjacent 1768 modules. A separate user terminal offers a limited 24V DC feed for field devices. It suits panels already served by a 24V DC control bus, removing the need for a separate AC feed to the controller chassis and keeping the automation system on a single regulated DC supply.

1768-PB3 Specifications

Brand Allen-Bradley Part Number 1768-PB3
Product Type 1768 CompactLogix DC Power Supply Input Voltage Range 16.8...31.2V DC (24V DC nominal)
Backplane Output 24V DC at up to 3.5 A User 24V DC Terminal 18...27.6V DC at up to 0.25 A
Maximum Input Power 112 W Maximum Inrush Current 50 A
Power Dissipation 22 W Height 131.5 mm (5.18 in)
Standard Warranty 1 year

1768-PB3 Datasheet & Manual

Download Datasheet & ManualAllen-Bradley 1768-PB3 · PDF · Official Allen-Bradley document
